Controlled Impedance PCB Guide: Design, Stackup & Testing

A high-speed interface can be routed neatly, pass a design-rule check, and still fail in the lab. The cause is often not the logical connection but the electrical path: the trace, dielectric, reference plane, vias, pads, and connectors do not present a consistent impedance to the signal.

Controlled impedance PCB design prevents this problem by treating critical traces as transmission lines. Their geometry and surrounding materials are designed together to achieve a target characteristic impedance, and the PCB manufacturer controls production variables so the finished board stays within an agreed tolerance.

This controlled impedance PCB guide explains when impedance control is necessary, what determines PCB trace impedance, how to plan the stackup and routing rules, what to include in fabrication data, and how manufacturers verify the result with time-domain reflectometry (TDR).

What Is a Controlled Impedance PCB?

A controlled impedance PCB is a printed circuit board in which selected signal traces are designed and manufactured to maintain a specified characteristic impedance within a defined tolerance.

Every PCB trace has characteristic impedance. The word controlled means that the designer and fabricator have intentionally managed the trace geometry, dielectric construction, and production process to achieve a target value such as 50 ohms single-ended or 100 ohms differential.

Characteristic Impedance vs. DC Resistance

DC resistance describes how a conductor opposes steady current. It depends mainly on conductor length, cross-sectional area, and copper resistivity. A multimeter can measure it.

Characteristic impedance, written as Z0, describes the voltage-to-current relationship of a traveling electromagnetic wave on a transmission line. For a low-loss line, the basic relationship is:

$$Z_0 \approx \sqrt{\frac{L’}{C’}}$$

Here, $L’$ is inductance per unit length and $C’$ is capacitance per unit length. Trace geometry and nearby conductors determine both values. This is why moving a trace closer to its reference plane, changing its width, or adding nearby copper changes its impedance even when its DC resistance is almost unchanged.

Why Impedance Discontinuities Cause Reflections

When a signal encounters a different impedance—at a connector, via, pad, branch, plane transition, or poorly controlled trace section—part of its energy can reflect toward the source. Reflections may produce ringing, overshoot, undershoot, jitter, reduced noise margin, or a closed eye diagram.

The objective is not to make every physical feature identical. That is impossible. The practical objective is to keep the transmission path close enough to the required impedance and make unavoidable discontinuities electrically small for the interface bandwidth.

Texas Instruments explains that changes anywhere in the source–trace–via–connector–receiver chain can create reflections. Its current high-speed routing guide also identifies trace geometry, material permittivity, and surrounding layers as key impedance variables. See the TI High-Speed Layout Guidelines and TI High-Speed Layout Guidelines for Signal Conditioners and USB Hubs.

When Is PCB Impedance Control Necessary?

Controlled impedance is normally required when the electrical length of a route is significant compared with the signal transition time. This occurs in high-speed digital, RF, microwave, fast clock, memory, and high-bandwidth serial designs.

Do not decide based on clock frequency alone. A relatively low-frequency signal with a very fast edge can contain high-frequency energy and behave as a transmission line. The IPC-2141A design guide likewise emphasizes edge rate as a central meaning of “high speed.”

Signals That Commonly Require Controlled Impedance

Typical candidates include:

• USB, HDMI, DisplayPort, PCI Express, SATA, and other high-speed serial links
• Ethernet PHY connections and other high-speed networking interfaces
• LVDS and similar differential signaling
• DDR and other memory buses, depending on the generation and topology
• RF feed lines, antennas, filters, mixers, and amplifiers
• Fast clocks and synchronization signals
• High-speed ADC, DAC, FPGA, CPU, and SoC interfaces

Always take the target and tolerance from the applicable interface specification, component data sheet, or reference design. Do not assign 50 or 100 ohms merely because those values are common.

Common Impedance Targets

The following values are useful reference points, not universal design rules:

Application or structure	Common target	Important note
General RF or single-ended high-speed line	50 Ω single-ended	Confirm the source, load, connector, and device requirements.
USB 2.0 data pair	90 Ω differential	TI summarizes 90 Ω ±15% differential and 45 Ω ±15% single-ended.
HDMI high-speed pair	100 Ω differential	TI summarizes 100 Ω ±15% differential and 50 Ω ±15% single-ended.
DisplayPort high-speed pair	100 Ω differential	TI summarizes 100 Ω ±10% differential and 50 Ω ±15% single-ended.
LVDS pair	Often 100 Ω differential	Use the device and interface requirements; variants exist.

These examples show why a fabrication note must identify each impedance class. A single board may need several targets on different layers.

How Controlled-Impedance Traces Work

A PCB trace becomes a transmission line through its relationship with one or more reference conductors. The electromagnetic field exists partly in the dielectric and partly around the copper. The geometry of this field determines the line’s inductance, capacitance, propagation velocity, and impedance.

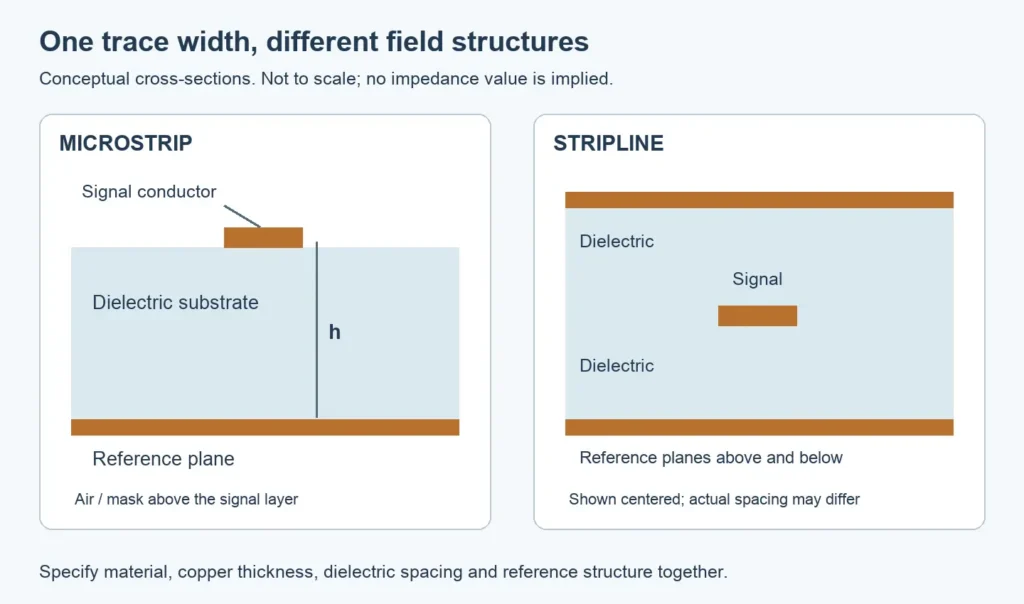

Microstrip

A microstrip is a surface trace routed over a reference plane, usually ground. Its field passes through the PCB dielectric, solder mask, and surrounding air.

Microstrip routing is accessible and often has lower dielectric loss than an equivalent internal route because part of the field is in air. However, it is more exposed to external coupling, solder-mask variation, and environmental effects.

Embedded Microstrip

An embedded microstrip is close to a reference plane but covered by dielectric. It provides more shielding than a surface microstrip while retaining a one-dominant-plane structure. Its exact construction should be modeled rather than treated as a surface microstrip.

Stripline

A stripline is an internal trace between two reference planes. A symmetric stripline is centered between the planes; an asymmetric stripline is closer to one plane than the other.

Stripline provides strong field containment and good isolation, but usually has more dielectric loss than surface microstrip. The two reference-plane distances must be included in the impedance model.

Coplanar Waveguide With Ground

Coplanar waveguide with ground uses grounded copper beside the signal trace, usually with a reference plane underneath. It can provide additional field confinement and convenient ground access for RF circuits. Its impedance depends on the signal width, side gaps, ground-via arrangement, and lower reference plane.

Single-Ended and Differential Impedance

Single-ended impedance is defined between one signal conductor and its reference structure. Differential impedance describes the relationship between two conductors driven with equal and opposite signals.

Differential impedance is not automatically twice the single-ended impedance. Coupling between the two traces changes the odd-mode impedance. Pair spacing must therefore be included in the calculation. Bringing the traces closer generally increases coupling and lowers the differential impedance when the other geometry remains unchanged.

What Determines PCB Trace Impedance?

Controlled impedance depends on several interacting variables. Changing one parameter may require changes elsewhere to recover the target.

Variable	Typical effect when the variable increases	Why it matters in production
Trace width	Impedance decreases	Etching changes the finished top and bottom widths.
Finished copper thickness	Impedance generally decreases	Outer layers may gain copper during plating.
Distance to the reference plane	Impedance increases	Pressed dielectric thickness varies with laminate and resin flow.
Dielectric constant, Dk	Impedance decreases	Dk depends on material, resin content, frequency, and test method.
Differential-pair spacing	Differential impedance generally increases as spacing increases	Etch variation changes both width and gap.
Solder mask over a surface trace	Impedance usually decreases slightly	Mask thickness and Dk affect the local field.
Nearby copper	Can raise or lower impedance depending on geometry	Ground pours, plane edges, and copper thieving can change field distribution.
Copper roughness	Affects loss and can shift effective electrical behavior	The effect becomes more important as frequency rises.

Trace Width and Etched Shape

The finished trace is not a perfect rectangle. Chemical etching normally produces a trapezoidal cross-section, and outer-layer plating changes copper thickness. A field-solver model should use realistic finished geometry or the manufacturer’s established process model.

This is one reason a “6 mil trace equals 50 ohms” rule is unreliable. The same 6 mil trace may have very different impedance on another layer, another stackup, or another factory process.

Dielectric Thickness

Distance from the trace to its reference plane is often one of the strongest impedance controls. A larger distance reduces capacitance and usually raises impedance. A smaller distance usually lowers impedance and permits a narrower trace for the same target.

The relevant value is the finished or pressed dielectric thickness, not simply the nominal prepreg sheet thickness before lamination.

Dielectric Constant and Material Selection

FR-4 is a material class, not a single electrical specification. Different laminates—and different resin/glass constructions within a laminate family—can have different Dk and dissipation factor values. Dk can also vary with frequency, axis, and test method.

For early estimates, use a documented value appropriate to the material and frequency. For release to production, use the design Dk and construction data agreed with the laminate supplier and PCB manufacturer. At higher data rates or longer channel lengths, insertion loss and Dk stability may justify a low-loss laminate even if ordinary FR-4 can achieve the target impedance.

Reference-Plane Geometry

The reference plane must be continuous under the controlled trace. A split, void, plane edge, or poorly designed antipad changes the return path and local impedance. It can also increase loop area, emissions, and coupling.

Solder Mask and Surface Finish

Solder mask adds dielectric around surface traces and normally lowers microstrip impedance slightly. Whether a trace is modeled as coated or uncoated must match production. Surface finish also changes conductor geometry, although its impedance effect is usually smaller than major stackup and width changes.

How to Design a Controlled Impedance PCB

The safest workflow begins before routing. Stackup, material availability, achievable geometry, and impedance targets should be resolved together.

Step 1: Identify Every Controlled-Impedance Net Class

Review component data sheets, interface standards, and reference designs. For each critical class, record:

• Single-ended or differential target impedance
• Required tolerance
• Maximum route length or insertion-loss budget, if specified
• Intra-pair and inter-pair skew limits
• Reference plane requirements
• Termination strategy
• Connector, cable, and package constraints

Do not mix impedance, length matching, and spacing into one vague “high-speed” rule. They solve different problems and should be documented separately.

Step 2: Select the Layer Count and Reference Planes

Assign each controlled routing layer an adjacent, continuous reference plane. A simple four-layer concept might place surface signals above a solid ground plane, but the correct stackup depends on routing density, power integrity, EMC, board thickness, loss, and manufacturability.

For multilayer boards, internal stripline layers can improve isolation. Surface microstrip may be preferable when low dielectric loss, easy probing, or fewer layer transitions matter more. There is no universal best layer count.

Step 3: Confirm the Stackup With the PCB Manufacturer

Ask the manufacturer for:

• Available core and prepreg constructions
• Finished dielectric thicknesses
• Material and design-Dk assumptions
• Base and finished copper thicknesses
• Minimum manufacturable trace width and pair gap
• Standard impedance tolerances
• Solder-mask assumptions
• Coupon and TDR-report options

This step prevents a common failure: routing an entire board around a theoretical stackup that the factory cannot build consistently.

Step 4: Calculate the Initial Geometry

Use a 2D electromagnetic field solver to calculate trace width and, for differential pairs, pair spacing. The model should include the actual transmission-line type, dielectric stack, copper thickness, etched shape, solder mask, and nearby copper when relevant.

Simple impedance equations and online calculators are useful for feasibility checks. They can tell you whether a proposed stackup will require an impractically wide or narrow trace. They should not be the final authority for dense or high-speed production designs.

Step 5: Create Separate PCB Design Rules

Enter the approved geometry into the ECAD constraint manager. Use separate rules where layers or structures differ. A 50 ohm microstrip and a 50 ohm stripline will not normally use the same width.

For differential classes, control at least:

• Trace width
• Pair gap
• Pair-to-pair and pair-to-other-signal clearance
• Allowed layers
• Reference plane
• Intra-pair skew
• Maximum via count, when necessary

Step 6: Route With a Continuous Return Path

Keep controlled traces over the same uninterrupted reference plane wherever possible. Do not cross plane splits or large voids. At a signal via transition, provide nearby ground-return vias when the reference relationship changes so high-frequency return current can move between reference planes.

TI’s 2026 high-speed guide recommends a solid ground reference and explains that crossing a plane split forces return current onto a longer path, which can increase radiation, inductance, interference, and signal degradation.

Step 7: Review Every Discontinuity

The straight trace is only one part of the channel. Review:

• BGA escape neck-downs
• Vias, unused via stubs, and antipads
• AC-coupling capacitor pads
• Connectors and launch regions
• Test pads and branches
• Layer changes
• Plane cutouts and board edges
• Differential-pair uncoupling and asymmetry

For very high data rates, use 3D electromagnetic modeling or a validated reference design for critical via and connector launches. Back-drilling may be needed when unused plated via stubs would create excessive resonance or insertion loss.

Step 8: Release an Explicit Fabrication Specification

Do not expect the manufacturer to infer controlled nets from trace appearance. Include a clear impedance table and fabrication note.

Required field	Example
Impedance class	Z1
Signal type	Single-ended
Target and tolerance	50 Ω ±10%
Routing layer	L1
Reference layer	L2 GND
Structure	Coated microstrip
Nominal geometry	Per approved stackup and impedance table
Test requirement	TDR coupon; report required

For a differential class, add finished trace width and pair gap or reference the approved manufacturer stackup. State whether the supplier may adjust controlled-impedance widths and gaps for process compensation. If adjustments are allowed, require notification when a change could affect clearance, breakout, coupling, or timing.

Controlled Impedance PCB Layout Guidelines

Good routing protects the impedance model after the stackup has been solved.

Maintain Constant Geometry

Keep trace width, copper environment, and differential spacing consistent. Short neck-downs may be unavoidable in a BGA escape or connector launch, but keep them as short as practical and evaluate them at high data rates.

Avoid adding copper pours close to an impedance-controlled line unless the solver model includes them. Grounded coplanar copper must have a controlled gap and adequate via stitching; a floating pour is not a reliable reference.

Keep Reference Planes Continuous

Never route a critical signal across a split in its reference plane. If a route changes layers, consider how its return current changes layers as well. Place ground stitching vias close to the signal vias where appropriate.

Minimize Vias and Stubs

Every via adds a three-dimensional impedance discontinuity. Keep via count low, use symmetrical via structures for differential pairs, and avoid unnecessary test-point stubs. For high-frequency channels, optimize antipads and consider blind vias, buried vias, microvias, or back-drilling when justified by simulation and cost.

Preserve Differential-Pair Symmetry

Route both conductors through similar pads, vias, bends, and reference environments. Keep the pair coupled according to the solved gap, except where component fan-out forces a short deviation. Match within the actual protocol skew limit rather than applying an arbitrary zero-skew goal.

Control Bends Without Treating Them as the Only Risk

Use gentle bends, arcs, or two 45-degree segments where practical. A corner changes local width and coupling, but pads, vias, plane transitions, and stubs often create larger discontinuities. Prioritize the whole channel instead of focusing only on corner style.

Separate Aggressors and Victims

Increase spacing between unrelated high-speed routes, clocks, switching nodes, and sensitive analog signals. Spacing rules such as 3W or 5W can be useful starting points, but they are not universal guarantees. Coupling depends on stackup, parallel run length, edge rate, and field geometry.

PCB Impedance Calculation: What the Manufacturer Recalculates

The designer’s calculation defines a viable layout. The PCB manufacturer’s engineering calculation translates that layout into a repeatable production process.

Design Values vs. Production Values

Before fabrication, CAM engineers may recalculate impedance using their material database, pressed-thickness predictions, etch compensation, plating process, and field-solver model. The resulting artwork width may differ slightly from the nominal design width while targeting the same finished impedance.

This adjustment is normal when authorized. The critical point is to agree on what may change and which dimensions must remain fixed for routing clearance, differential coupling, or component escape.

Why Fabricator Involvement Matters

Two manufacturers may propose different trace widths for the same impedance because they use different laminate constructions and process compensations. Transferring a design without reconfirming the stackup can therefore shift the finished impedance even when the Gerber width remains unchanged.

For repeat production, control the approved material family, stackup revision, impedance table, and testing requirement. If a substitute material is proposed, review both electrical performance and manufacturability before approval.

Controlled Impedance Tolerance

Impedance tolerance is the permitted variation around the target. A 50 ohm trace at ±10% has an acceptance band of 45 to 55 ohms. A 100 ohm differential pair at ±10% has an acceptance band of 90 to 110 ohms.

Many commercial PCB builds use ±10% as a practical specification. Tighter tolerances such as ±5% may be possible, but they can narrow material and process options, increase engineering or test requirements, and raise cost. The correct tolerance comes from the interface budget and manufacturer capability—not from choosing the smallest number available.

Sources of Impedance Variation

Production variation may come from:

• Finished trace width and etched sidewall shape
• Copper plating thickness
• Pressed dielectric thickness
• Resin content and glass style
• Material Dk variation
• Solder-mask thickness
• Layer registration and differential gap
• Local copper density and lamination behavior

The manufacturer should evaluate these variables together. Tight control of trace width alone cannot compensate for an unstable dielectric construction.

How Is Controlled Impedance Tested?

The most common production verification method is time-domain reflectometry. TDR launches a fast electrical step into a transmission line and measures the reflections. The waveform reveals the line’s characteristic impedance and changes along its length.

TDR Test Coupons

Manufacturers usually test dedicated impedance coupons placed on the production panel. A representative coupon uses the same controlled layer, reference plane, dielectric construction, copper process, line geometry, and solder-mask condition as the board.

IPC-TM-650 Method 2.5.5.7 covers characteristic-impedance measurement of printed-board transmission lines by TDR. IPC-2141A provides broader design guidance for high-speed controlled-impedance circuit boards.

What an Impedance Test Report Should Show

A useful report identifies:

• Order or lot information
• Coupon and impedance class
• Target impedance and tolerance
• Measured impedance
• Pass/fail result
• Test equipment or method
• Date and operator or system record

If traceability is important, state the required report and sampling plan in the purchase documentation rather than requesting it after boards are complete.

What Coupon Testing Does Not Prove

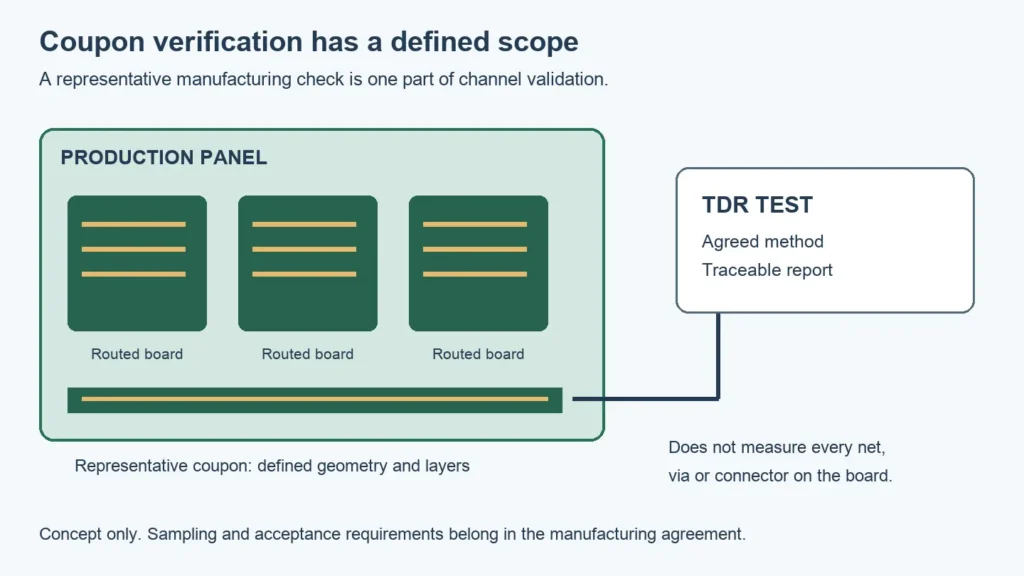

A passing coupon confirms that the representative transmission line met the acceptance requirement. It does not prove that every connector launch, component pad, via transition, neck-down, or assembled channel meets its full signal-integrity budget.

Use coupon testing for fabrication control. Use simulation, VNA or TDR characterization of the actual path, eye-diagram testing, and functional compliance testing when the complete channel must be validated.

Controlled Dielectric vs. Controlled Impedance

These terms are related but not identical.

• Controlled dielectric means the manufacturer holds specified material and dielectric-thickness parameters. The designer may provide fixed trace geometry and accept responsibility for the predicted impedance.
• Controlled impedance means the finished transmission-line structure must meet a target impedance and tolerance, normally supported by engineering review and measurement.

Controlled dielectric can be appropriate for established designs with validated geometry and a locked material system. Controlled impedance provides more direct acceptance criteria when the electrical result is the priority. Confirm how your manufacturer defines and documents each service.

Common Controlled Impedance PCB Mistakes

Mistake	Why it causes problems	Better approach
Starting layout before stackup approval	Final dielectric thickness may force unusable trace widths or gaps.	Confirm a manufacturable stackup first.
Specifying only “50 ohm traces”	The manufacturer cannot identify layers, references, tolerance, or mask state.	Provide a complete impedance table.
Treating one width as 50 ohms on every layer	Each layer has different plane distance and field geometry.	Solve every layer and structure separately.
Using a generic FR-4 Dk	Actual laminate construction may differ materially.	Use an agreed design Dk and material construction.
Routing over plane splits	Return-path detours create discontinuity and EMI risk.	Route over a continuous reference plane.
Ignoring solder mask	Surface-trace calculations no longer match production.	Model the coated or uncoated condition correctly.
Allowing unreviewed CAM width changes	Adjustments may violate pair gaps, clearance, or breakout limits.	Define adjustment authority and approval limits.
Assuming a passing coupon validates the complete channel	Coupons do not include all board discontinuities.	Combine fabrication testing with channel validation.
Requesting an unnecessarily tight tolerance	Cost and process constraints increase without system benefit.	Use the interface budget and proven capability.

How Controlled Impedance Affects PCB Cost

Impedance control can increase cost, but the test itself is only one factor. The larger cost drivers are often the stackup and process decisions needed to achieve the target reliably.

Potential cost additions include:

• More layers to provide continuous reference planes
• Specific core and prepreg constructions
• Low-loss or high-frequency laminate
• Tighter trace-width and spacing capability
• Tighter impedance tolerance
• TDR coupon generation and reporting
• Back-drilling, HDI vias, or optimized high-speed transitions
• Additional engineering review and lot traceability

Cost can often be reduced without weakening signal integrity by using a standard manufacturer stackup, choosing a realistic tolerance, avoiding unnecessarily narrow geometry, and involving the factory early.

Controlled Impedance PCB Specification Checklist

Before requesting a quotation or releasing fabrication data, confirm that the package includes:

• Gerber, ODB++, or IPC-2581 fabrication data
• NC drill and route data
• Fabrication drawing and stackup drawing
• Material family or approved alternatives
• Finished board and copper thicknesses
• Impedance target and tolerance for every class
• Single-ended or differential designation
• Routing and reference layers
• Nominal trace width and differential gap, if fixed
• Solder-mask condition over controlled traces
• Permission and limits for manufacturer geometry adjustment
• TDR coupon requirement
• Test method, report, and sampling requirements
• Any back-drill, via-stub, insertion-loss, or surface-finish requirements

An approved stackup document should receive a revision identifier. If the stackup, laminate, copper weight, or controlled geometry changes, recheck the impedance and update the fabrication release.

Frequently Asked Questions About Controlled Impedance PCBs

Is 50 Ohm PCB Trace Width Always the Same?

No. A 50 ohm width depends on the layer, dielectric thickness, Dk, copper thickness, solder mask, reference planes, and nearby copper. The correct width must be calculated for the actual stackup.

Does a Differential Pair Need Two 50 Ohm Traces to Make 100 Ohms?

Not necessarily. When the traces are electromagnetically coupled, differential impedance is affected by their spacing. The pair must be solved as a coupled structure. Two isolated 50 ohm lines may approach 100 ohms differential, but that approximation is not reliable for every geometry.

Can a Two-Layer PCB Have Controlled Impedance?

Yes, if one layer provides a suitable continuous reference and the required geometry is manufacturable. However, the large dielectric distance of a typical 1.6 mm two-layer board may require an impractically wide trace for some targets. A thinner board or multilayer stackup can provide better geometry and return-path control.

Can I Measure PCB Impedance With a Multimeter?

No. A multimeter measures low-frequency or DC resistance, not transmission-line characteristic impedance. Production impedance is commonly measured with TDR equipment.

Is an Online PCB Impedance Calculator Accurate Enough?

It is useful for an initial estimate if its model matches the transmission-line structure. Final values should come from a suitable field solver using the real stackup and should be reviewed against the manufacturer’s material and process data.

Does Solder Mask Change PCB Trace Impedance?

Yes. Solder mask adds dielectric around a surface trace and generally lowers its impedance slightly. Include it in the model when the finished board will cover the controlled trace.

Should the PCB Manufacturer Be Allowed to Change Trace Width?

Often yes, within agreed limits. The manufacturer may need to compensate for etching, plating, and pressed dielectric thickness. Make the target impedance and critical clearances authoritative, and define when a proposed adjustment requires designer approval.

Does Every Controlled Impedance PCB Need TDR Testing?

Not every application or purchasing plan requires it, but measurement provides objective evidence that the representative production structure met the specified tolerance. For critical high-speed, RF, regulated, or repeat-production designs, requiring coupons and a report is usually prudent.

Conclusion: Treat Impedance as a Design-to-Manufacturing Requirement

Reliable controlled impedance PCB design is a coordinated process. The electrical specification sets the target. The stackup creates a manufacturable transmission-line structure. Layout preserves geometry and return paths. Fabrication engineering compensates for real process behavior. TDR testing then verifies that the representative production structure meets the agreed tolerance.

The most effective action is also the earliest one: involve your PCB manufacturer before routing critical nets. Share the target impedances, tolerances, layer assignments, material needs, and expected data rate. An approved stackup at the start reduces late layout changes, quotation uncertainty, and signal-integrity risk.

If you are preparing a controlled impedance PCB for quotation, send LEADHUI PCB your fabrication data, preliminary stackup, impedance table, material requirements, quantity, and test expectations for an engineering review.
