Flex PCB: Types, Design, Manufacturing & Uses

Modern electronic hardware design operates under punishing spatial constraints. Across consumer wearables, portable diagnostic tools, electric vehicle (EV) battery arrays, and avionics, the engineering challenge is uniform: pack dense computing power, sensor suites, and high-speed data paths into non-rectangular, ergonomically sculpted, or continuously moving mechanical envelopes.

Standard rigid printed circuit boards (FR-4) cannot bridge these non-planar interfaces without external help. Traditionally, engineers relied on multi-conductor discrete wire harnesses, ribbon cables, and terminal headers to route power and signals between separated rigid boards. However, wire harnesses introduce severe liabilities: they demand manual routing on assembly lines, consume cubic volume, add parasitic inductance, and present dozens of crimp or solder termination points vulnerable to vibrational fatigue.

The flexible printed circuit solves this packaging bottleneck directly. By moving conductors onto a pliable, chemically stable, and thermally resilient polymer film, the circuit itself becomes an elastic, volumetric interconnect.

This comprehensive guide breaks down the core architecture of flex PCBs, classifies their primary structural variants, contrasts core substrate materials, defines strict mechanical and layout design-for-manufacturing (DFM) guidelines, maps out production workflows, and outlines a rigorous decision framework for selecting between flex, rigid, and hybrid rigid-flex configurations.

For preliminary stackup modeling, review our guide on PCB prototyping services and baseline PCB design guideline.

What Is a Flex PCB?

A flex PCB—also widely designated as an FPC board or flexible printed circuit—is a patterned arrangement of conductive printed traces bonded to an intrinsically flexible dielectric base film. Instead of providing the structural rigidity of a structural substrate like woven glass-reinforced epoxy (FR-4, G-10), a flex circuit is engineered to yield predictably under mechanical strain while maintaining electrical continuity and controlled impedance.

How a Flex PCB Works

A flex PCB functions as both a circuit board (carrying active and passive surface-mount components) and an integrated cabling system. The core assembly relies on balanced layers:

1. Flexible Base Dielectric: The structural floor, providing dielectric insulation and dimensional stability.
2. Conductive Metal Foil: High-ductility copper etched into signal traces, power planes, and ground shields.
3. Flexible Coverlay (or Covercoat): A protective polyimide film laminated over the patterned copper traces with high-performance adhesive, replacing the brittle solder mask seen on rigid boards.
4. Adhesive Layers / Bondplies: Cross-linked acrylic or modified epoxy systems used to bond copper foils to core films and seal coverlays. Advanced builds utilize adhesiveless substrates, casting the polyimide directly onto the copper foil.
5. Localized Stiffeners: Mechanically rigid backing materials (FR-4, polyimide sheets, or stainless steel/aluminum plates) bonded with pressure-sensitive adhesives (PSA) or thermosetting adhesives to areas requiring structural rigidity—such as beneath fine-pitch connectors or surface-mount devices (SMDs).

Crucially, flexibility does not imply unlimited, unconstrained bending. Every flex PCB possesses an operating boundary defined by its cross-sectional stackup, foil grain orientation, total dielectric thickness, and operational temperature. Exceeding its minimum bend radius introduces tensile strain on the outer radius and compressive strain on the inner radius, resulting in copper work-hardening, micro-fracturing, or dielectric delamination.

Flex PCB vs. FPC vs. Flexible Printed Circuit

Within the hardware industry, the terms flex PCB, FPC (Flexible Printed Circuit), and flexible printed circuit board refer to the exact same technological family:

• FPC / Flexible Printed Circuit: Preferred terminology in Asian manufacturing ecosystems and academic/IPC literature (such as IPC-6013 and IPC-2223).
• Flex PCB: Common industry jargon among Western system integrators, embedded hardware engineers, and procurement teams.

Common Misconception: A flex PCB is not merely a modern flat flexible cable (FFC) or a ribbon jumper. While an FFC consists of straight, parallel rectangular copper conductors laminated between two polyester films solely for point-to-point connections, an FPC is a fully customizable lithographic circuit. It supports multi-axis routing, multiple conductor layers, microvias, impedance-matched differential pairs, embedded shielding planes, surface-mount ICs, and localized stiffeners.

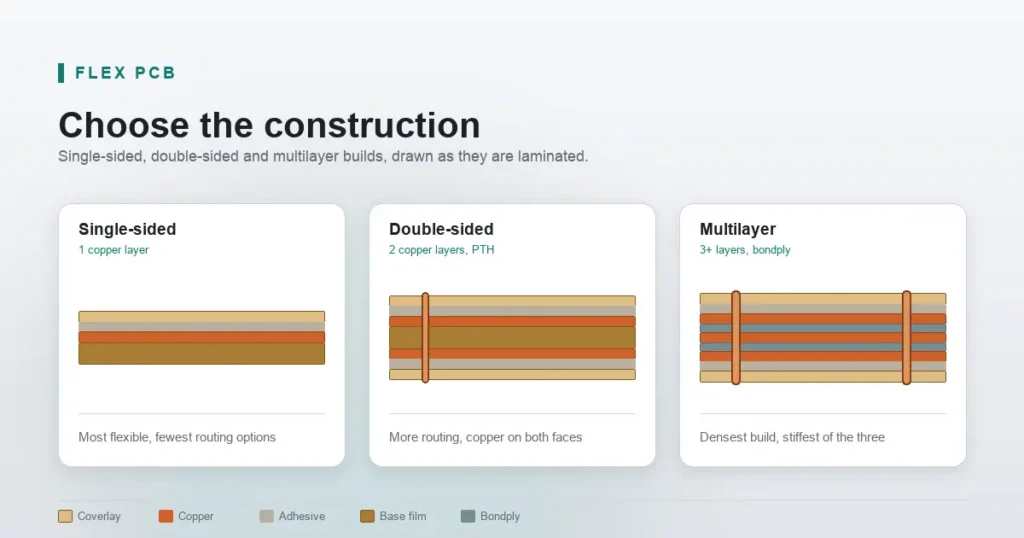

Types of Flex PCBs

Flex circuits are categorized by their conductive layer count, construction morphology, and whether they interface with rigid structural cores. Selecting the correct topology is the single most important factor controlling circuit density, assembly yield, and final unit cost.

Single-Sided Flex PCB

Single-sided flex circuits consist of a single conductive copper layer bonded to a flexible dielectric film, protected on the exterior by an applied coverlay or flexible liquid photoimageable (LPI) mask.

• Layer Count: 1 copper layer.
• Via Plating: None.
• Flexural Capability: Exceptional. Offering the thinnest overall stackup (often under 50 µm / 0.002 in total thickness), single-sided flex circuits exhibit the lowest bending resistance and the highest fatigue life in dynamic flex environments.
• Best Used For: High-volume, dynamic-flex applications, hinge connections, simple sensor mounts, and cost-constrained consumer interconnects (e.g., optical pickup heads in disc drives, printer printhead connections, laptop display hinges).

Double-Sided Flex PCB

Double-sided flex circuits feature two conductive copper layers sandwiching a central dielectric polyimide core. The layers are interconnected electrically through plated through-holes (PTH) or microvias.

• Layer Count: 2 copper layers.
• Via Plating: Chemically deposited and electroplated copper barrels through laser-drilled or mechanically drilled holes.
• Flexural Capability: High, though stiffer than single-sided builds. Dynamic fatigue life decreases relative to single-sided constructions because plated through-holes in flex areas cannot tolerate repetitive bending.
• Best Used For: Dense signal routing requiring ground shielding planes, controlled-impedance differential routing (e.g., USB 3.x, MIPI CSI/DSI interfaces), and mounting small surface-mount IC packages where pinouts necessitate cross-under traces.

Multilayer Flex PCB

Multilayer flex circuits contain three or more conductive copper layers separated by dielectric bondplies and adhesive systems, interconnected via complex blind, buried, or through-hole vias.

• Layer Count: 3 to 8+ layers (rarely exceeding 6 layers in dynamic flex zones due to extreme mechanical stiffness).
• Via Plating: Advanced HDI microvia structures, blind/buried configurations, and full through-hole plating.
• Benefits & Trade-offs: Delivers exceptionally high packaging density, advanced power distribution planes, and comprehensive high-frequency shielding. However, manufacturing complexity escalates sharply. As the layer count rises, the cross-sectional thickness increases, dramatically reducing bend elasticity. Multilayer flexes are predominantly restricted to static “flex-to-install” assemblies unless unbonded “flying-tail” layer construction is engineered into dynamic regions.
• Best Used For: Aerospace flight computers, military radar modules, high-density digital sensor pods, and telemetry assemblies where volumetric density overrides dynamic flex demands.

Rigid-Flex PCB

A rigid-flex PCB is a hybrid electromechanical construction combining rigid circuit boards and flexible substrates permanently laminated together into a single, unified assembly. The flexible polyimide layers do not terminate at the edge of the board; instead, they extend internally through the entire rigid stackup, emerging externally as flexible connecting arms or flex tails.

• Construction Difference: Unlike a standard rigid board connected to a flex jumper via Zero Insertion Force (ZIF) or Board-to-Board (B2B) connectors, rigid-flex integrates the flex conductors directly into the rigid board’s plated barrel structure.
• Key Advantages: Completely eliminates board-to-board connectors, reduces total package weight by up to 60%, guarantees robust signal integrity across the rigid-to-flex boundary, and survives high sustained shock/vibration profiles.
• Primary Applications: Medical imaging pacemakers, surgical tools, tactical avionics, high-end DSLR cameras, industrial robotic joints, and ultra-dense military communication gear.

For comprehensive layer-stacking strategies and impedance modeling on hybrid builds, explore our Rigid-flex PCB design guide.

Flex PCB Type Comparison

The following table provides an engineering comparison across all four major flex PCB configurations:

Parameter	Single-Sided Flex	Double-Sided Flex	Multilayer Flex	Rigid-Flex PCB
Typical Layer Count	1 layer	2 layers	3–8+ layers	2–16+ layers (Rigid) / 1–4 layers (Flex)
Bending Performance	Exceptional (Dynamic & Static)	High (Dynamic & Static)	Moderate to Low (Mostly Static)	High in flex zones; Zero in rigid zones
Component Density	Very Low (Basic SMDs)	Moderate	High	Maximum (Dual-sided SMT on rigid zones)
Relative Fabrication Cost	Lowest	Moderate	High	Highest
Connector Requirements	ZIF / Crimp Pins / Soldered	ZIF / B2B Connectors	ZIF / Custom Headers	Zero internal board-to-board connectors
Assembly Complexity	Low	Low to Moderate	Moderate	High (Requires specialized carrier pallets)
Primary Failure Mechanism	Copper fatigue under severe bend	Via crack under bending stress	Delamination / Inner-layer shear	Transition-zone stress rupture / Delamination

Why Use a Flex PCB? Key Benefits

When evaluating system-level trade-offs between conventional FR-4 rigid boards and flexible printed circuitry, the upfront raw board fabrication cost of flex is invariably higher. However, evaluating flex PCBs strictly by bare-board cost is a design anti-pattern. The economic and functional advantages of flex circuits emerge at the total system-assembly level.

TOTAL COST OF OWNERSHIP EQUATION: Total System Cost = Bare PCB Cost + Connector Costs + Wiring Harness Assemblies + Manual Cable Routing Labor + Field Rework & Warranty Repairs

1. Space and Weight Reduction

Flex circuits can be folded, contoured, twisted, and wrapped around internal chassis walls, fitting into non-planar voids that cannot accommodate flat rigid boards. Polyimide base films range from 12.5 µm to 50 µm in thickness, allowing finished flex circuits to weigh up to 70% to 80% less than equivalent rigid board-and-cable assemblies. In weight-critical applications like aerospace systems, portable biomedical monitors, and satellite payloads, every gram shaved off directly preserves battery life or payload margin.

2. Elimination of Connectors and Interconnect Failures

Connectors and crimp wire harnesses represent one of the primary failure modes in electro-mechanical products. Solder joints at cable headers are prone to cold joints, connector pins can back out or oxidize, and manual cable assembly risks miswiring during high-volume production.

• By replacing discrete cables and board-to-board headers with an integrated flex or rigid-flex PCB, you eliminate physical connectors entirely.
• Automated SMT assembly and one-piece wave/reflow soldering eliminate manual wiring errors.
• The failure rate of an uninterrupted copper trace on a polyimide core is orders of magnitude lower than that of two mechanical connector interfaces subject to fretting corrosion.

3. High Reliability in Dynamic Motion and Vibration

Standard stranded wire harnesses fatigue and snap under continuous cyclic motion, and heavy solder joints on rigid boards crack under mechanical resonance.

• Flex PCBs can endure millions of dynamic bending cycles without electrical discontinuity when designed with proper bend-to-thickness ratios and rolled-annealed copper.
• Their low profile and near-zero mass minimize inertia, making them impervious to high-G shock, continuous mechanical oscillation, and severe automotive vibration profiles.

4. Signal Integrity and Controlled Impedance

Signal integrity is not an automatic side effect of using flex; it is an engineered benefit achieved through geometry:

• Unlike hand-bundled wire harnesses where distance between conductors varies randomly along the run, a flex circuit enforces lithographically precise, uniform trace geometry.
• Dielectric thickness and trace spacing are maintained across the entire length.
• High-speed differential pairs (e.g., PCIe, USB 3.2, LVDS) can be engineered to tight impedance tolerances (e.g., 90Ω or 100Ω ±10%) using continuous coplanar or stripline ground planes, minimizing crosstalk, impedance discontinuities, and electromagnetic interference (EMI).

Flex PCB Materials and Construction

A flexible printed circuit is a composite material stackup whose mechanical endurance, thermal survival, and electrical predictability depend entirely on the chemistry of its constituents.

Base Materials: Polyimide vs. Polyester

The dielectric base film forms the core structural substrate of the flexible circuit.

Material Property	Polyimide (PI)	Polyester (PET)
Operating Temp Range	-200°C to +300°C	-40°C to +105°C
Solder Float Resistance	Excellent (Reflow Ready)	Poor (Melts at ~250°C)
Dielectric Constant (Dk)	3.2 – 3.5 @ 1 MHz	2.8 – 3.2 @ 1 MHz
Flexibility & Tear Res.	High tensile, tear-proof	High flex, tears easily
Moisture Absorption	High (1.5% to 3.0%)	Low (< 0.5%)
Primary Application	Military, Medical, Auto, SMT	Low-cost membranes, toys

1. Polyimide (PI): The definitive standard for professional electronics (widely marketed under trade names such as DuPont Kapton® and Kaneka Apical®). Polyimide withstands standard lead-free reflow temperatures exceeding 260°C, features stable electrical insulation across a vast thermal envelope, and resists harsh industrial solvents. Because polyimide readily absorbs environmental moisture, boards must undergo a controlled dehydration pre-bake cycle before undergoing component soldering to prevent delamination and blistering.
2. Polyester (PET): A low-cost alternative. PET cannot survive standard automated reflow soldering without melting or catastrophically deforming. Its use is strictly limited to low-cost consumer electronics, membrane switches, automotive dashboard lighting strips, and systems utilizing cold-crimp pins or low-temperature anisotropic conductive films (ACF).

Engineers must obtain certified raw material datasheets confirming compliance with IPC-4202 (Dielectric Base Films for Flexible Printed Boards) before freezing designs.

Copper Foils: Rolled-Annealed vs. Electrodeposited

Copper foil selection governs whether a flex circuit can tolerate millions of cyclic bends or will crack during its initial installation fold.

• Rolled-Annealed (RA) Copper (IPC-4562/3): Manufactured by passing an ingot of pure copper through progressive mechanical rolling mills under heavy pressure, followed by thermal annealing. This process yields horizontally elongated, plate-like crystal grains. RA copper possesses supreme ductility. When the circuit flexes, the horizontal grain boundaries slide past each other without cracking. Mandatory for all dynamic flex applications.
• Electrodeposited (ED) Copper (IPC-4562/1): Produced by electrochemically plating copper ions out of an acid bath onto a slowly rotating polished titanium drum. This produces a vertical, columnar crystalline grain structure. ED copper offers excellent adhesion and fine-line etching characteristics at a lower cost, but it is structurally brittle under bending strain. It is primarily suitable for static flex-to-install designs or high-layer-count rigid sections.

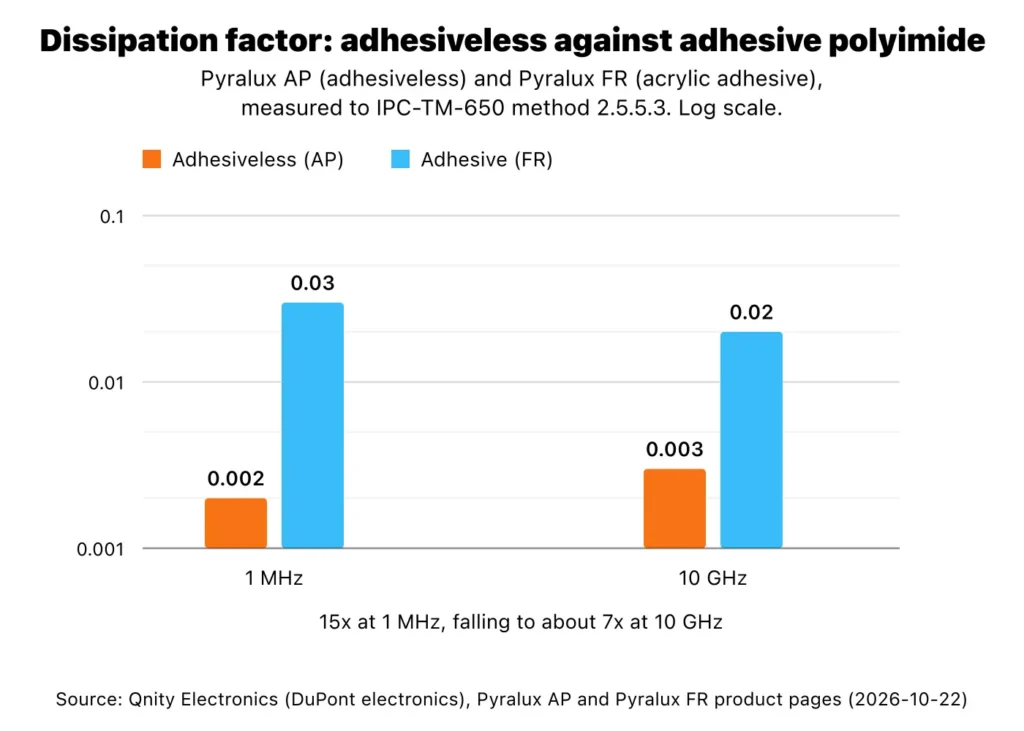

Adhesive Systems vs. Adhesiveless Substrates

Early flex circuit technology bonded copper foil to polyimide film using modified acrylic or epoxy adhesives. Today, advanced applications employ adhesiveless substrates (such as DuPont Pyralux® AP):

• Adhesiveless Laminates: Copper is electrochemically cast directly onto the polyimide film, or polyimide is liquid-cast onto copper foil. The absence of an intermediate adhesive layer reduces total stackup thickness by 25 µm to 50 µm, improves thermal conductivity, lowers the overall dielectric constant (Dk), improves high-temperature dimensional stability, and eliminates the primary outgassing source in aerospace applications.
• Adhesive-Based Systems: Lower in raw-material cost and suitable for basic static flex jumpers. However, adhesives exhibit high thermal expansion coefficients (CTE), lower glass transition temperatures (T_g), and tend to squeeze out (“adhesive bleed”) into clearance holes during thermal lamination.

Coverlay vs. Flexible Solder Mask

To protect etched copper traces from environmental oxidation, moisture ingress, and mechanical damage, standard rigid boards apply a brittle liquid photoimageable (LPI) solder mask. On flex circuits, standard solder masks crack when flexed.

• Polyimide Coverlay: The standard protection method. A solid sheet of polyimide film coated on one side with a thermosetting B-stage acrylic or epoxy adhesive. Openings for solder pads are precision cut using CNC drills, punch dies, or UV/CO2 lasers. The coverlay is then thermally pressed onto the core under vacuum. Coverlays reinforce the traces, effectively moving the copper toward the mechanical neutral axis of the stackup.
• Flexible Solder Mask: A specially formulated, flexible LPI mask. Applied like standard solder mask, it allows tighter pad clearances and finer openings for ultra-fine pitch components (e.g., 0.4 mm pitch BGAs). However, its dynamic bend endurance is drastically inferior to a continuous polyimide coverlay film.

Stiffeners and Surface Finishes

Flex circuits are inherently too supple to support the mechanical insertion forces of connectors or the physical weight of heavy electronic components. Stiffeners are localized mechanical backers applied to the non-component side of the flex circuit:

• FR-4 Stiffeners: Woven glass-epoxy sheets (0.2 mm to 1.5 mm+ thick) bonded beneath surface-mount connectors, ICs, and passive arrays to prevent the board from flexing under solder joints.
• Polyimide Stiffeners: Thin PI sheets (typically 0.1 mm to 0.3 mm) laminated beneath contact fingers to boost board thickness up to the precise mechanical mating specification of standard Zero Insertion Force (ZIF) connectors (commonly 0.30 mm ±0.03 mm).
• Metal Stiffeners (Stainless Steel / Aluminum): Stiff sheets bonded beneath high-pin-count components or heat-generating components to provide rigid mechanical stability, ground path continuity, and thermal dissipation.

Surface Finish Selection

Surface finishes on flex PCBs must tolerate thermal assembly profiles without embrittling thin copper runs:

• ENIG (Electroless Nickel Immersion Gold): The most widespread finish for flex circuits carrying SMT components and ZIF contacts. Provides an exceptionally flat coplanar surface for fine-pitch parts and resists environmental oxidation. Note: The intermediate nickel layer is brittle; ENIG must never be applied across active dynamic flex areas.
• Immersion Silver / Immersion Tin: Excellent alternatives for dynamic circuits where the brittle nickel underplate of ENIG must be avoided, providing good coplanar surfaces for fine-pitch SMT assembly.
• Hard Gold Plating: Applied over electroplated nickel strictly on sliding contact fingers, keyboards, or edge-card interfaces requiring high wipe-cycle wear resistance.
• Electroless Nickel Electroless Palladium Immersion Gold (ENEPIG): The premier choice for ultra-high-reliability aerospace and medical devices requiring both fine-pitch SMT assembly and gold/aluminum wire bonding.

For an expanded exploration of laminate selection and dielectric breakdown ratings, refer to our comprehensive PCB materials guide.

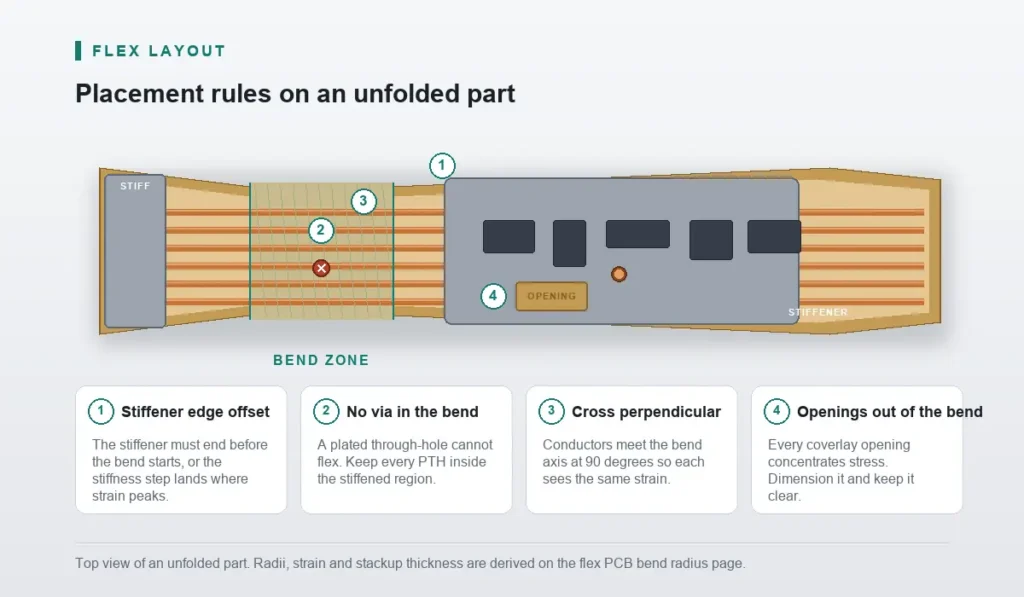

Flex PCB Design Rules That Prevent Failures

Designing a flexible printed circuit requires a fundamental shift in mindset: a flex circuit is an electromechanical spring, not a planar board. The copper layer behaves like any structural metal subjected to cyclic mechanical stress. A reliable flex PCB is engineered around its bend zones first; routing topologies, trace geometries, copper stackups, and component placements must defer to mechanical constraints.

All professional flex layout practices align with IPC-2223 (Sectional Design Standard for Flexible Printed Boards).

PRIMARY DESIGN GOLDEN RULE: Keep all vias, component pads, trace width transitions, and rigid stiffener edges completely outside the dynamic and static bend zones.

1. Define Static vs. Dynamic Flex Zones

During the architectural phase, explicitly map every square millimeter of the board into one of three mechanical zones:

1. Rigid / Stiffened Zones: Areas backed by FR-4, metal, or rigid board layers where components are mounted. No flexing occurs here.
2. Static Flex Zones (“Flex-to-Install”): Regions bent, folded, or creased once during final product enclosure assembly, remaining stationary throughout the operating lifecycle. (Examples: internal camera module connections, battery wrappers).
3. Dynamic Flex Zones: Regions subjected to repetitive, cyclic, or continuous flexing throughout the device’s operational life. (Examples: laptop display hinges, industrial robotic arms, printhead scan carriages).

2. Calculate Bend Radius From Stackup

The bend radius (R) is the distance measured from the inner surface of the bend to the center of curvature. Exceeding the material’s critical bend radius causes tensile rupture on the outer copper and compressive buckling/delamination on the inner copper.

Fabricators define standard safety multipliers based on total flex circuit thickness (T):

Bend Radius (R) = k × T

Where T is the total thickness of the flexible substrate (core, foil, adhesives, and coverlays in the bend area).

• Static Applications (Flex-to-Install):
• Single-Sided: Minimum R = 6 × T (Conservative: 10 × T)
• Double-Sided: Minimum R = 10 × T (Conservative: 12 × T)
• Multilayer: Minimum R = 15 × T to 20 × T
• Dynamic Applications (Cyclic Motion):
• Single-Sided: Minimum R = 20 ×T to 40 × T
• Double-Sided: Minimum R = 30 × T to 50 × T
• Multilayer: Avoid dynamic flexing. Multilayer stacks should be decoupled into separate, unbonded single-layer flex tails (“flying leads”) across the dynamic zone.

Example Bend Calculation:

• Total flex stackup thickness (T) = 0.12 mm (Double-sided adhesive-based flex).
• Required use case: Dynamic hinge (k = 30).
• Minimum Permissible Bend Radius (R):

R = 30 × 0.12 mm = 3.6 mm

Designing an enclosure with an internal bend radius tighter than 3.6 mm will induce premature metal fatigue failure.

3. Route Traces for Longevity

Standard routing rules for rigid PCBs do not apply in bend areas. Implement the following layout practices:

• Perpendicular Traversal: Route all copper traces strictly perpendicular (90º) to the physical bend axis. Never route traces diagonally across a bend zone; diagonal routing introduces asymmetric torsional shearing forces.
• Curved Geometry: Avoid sharp 90º and 45º angles. Use smooth, sweeping tangential arcs (curved traces) to prevent localized mechanical stress risers.
• Avoid Sharp Width Changes: Sudden transitions from a wide trace to a narrow trace concentrate mechanical stress at the transition shoulder. Use long, smooth linear tapers with transition tapers spanning a length at least twice the change in width.
• Staggered Layer Routing (Double-Sided): On double-sided flex circuits, never route traces directly on top of each other on opposing layers. Placing traces directly superimposed creates an I-beam structural effect, drastically increasing stiffness and doubling shear stress. Stagger opposing traces so they alternate across the cross section.

4. Keep Vias, Pads, and Components Out of Bend Areas

• Plated through-hole vias consist of crystalline electrodeposited copper barrels. When bent, the barrel walls buckle, deform, and shear away from the surface annular rings.
• Keep all vias at least 1.5 mm to 3.0 mm away from the start of any bend curvature or stiffener transition edge.
• Pad Anchoring (“Rabbit Ears”): Small SMT pads on flex substrates are bonded to polyimide using thin adhesive layers. Solder-iron heat and mechanical handling can easily peel pads off the core. Always design pads with teardrops and copper anchoring spurs (“rabbit ears”) extending beneath the adjacent coverlay to mechanically lock the pad edges into the board.

5. Use Hatched Copper Pours Instead of Solid Planes

Solid copper planes act as rigid structural sheets. When applied across a flex area, solid copper severely degrades flexibility and can blister during reflow soldering due to trapped moisture outgassing.

• Replace all solid power and ground planes traversing flex zones with hatched (cross-hatched) copper pours.
• Standard hatching geometries use 0.15 mm to 0.25 mm trace widths with 0.4 mm to 0.7 mm lattice openings, providing a balance of 50% to 70% copper coverage.
• Align the hatch lattice at a 45º angle relative to the bend line so that copper runs never run parallel or perpendicular to the bend axis.

6. Design Stiffener and Coverlay Transition Boundaries

The boundary line where a rigid stiffener or rigid board layer terminates and the flexible section begins is a dangerous mechanical stress point. If the coverlay edge, stiffener edge, and copper layer transition coincide along the exact same vertical plane, the flex circuit will crimp and tear like perforated paper along that seam.

• Apply a bead of flexible strain-relief fillet adhesive (typically an electronic-grade UV-cure polyurethane, silicone, or epoxy) along the transition seam between the stiffener edge and the flex tail.

To review your layout against complete fabrication design margins, check our comprehensive DFM checklist for flex PCB.

How Flex PCBs Are Manufactured

Fabricating a flexible circuit requires custom reel-to-reel or panelized material handling systems. Because flexible laminates lack mechanical rigidity, panels deform, stretch, sag, and warp during wet chemical processes, requiring specialized vacuum handling, specialized transport frames, and strict environmental tension controls.

Step 1: Material Preparation and Pre-Baking

Polyimide is naturally hygroscopic, absorbing up to 3% moisture by weight from ambient room air. Uncontrolled moisture converts instantly to steam during thermal lamination or soldering, causing violent delamination blisters. Raw laminates are baked in vacuum ovens at 120°C to 150°C for multiple hours to drive out all residual volatiles before processing begins.

Step 2: Photolithography and Chemical Etching

1. Photoresist Application: The copper-clad flexible substrate is coated with a uniform layer of liquid or dry-film photoresist.
2. Direct Imaging (LDI): High-precision Laser Direct Imaging systems project the circuit traces directly onto the resist. Modern LDI equipment dynamically compensates for non-linear material stretch and distortion across the flexible panel.
3. Chemical Etching: An acid-spray bath (cupric chloride or ferric chloride) dissolves unexposed copper, leaving clean conductor geometry.
4. Resist Strip: The remaining photoresist is stripped away in a chemical wash.

Step 3: Drilling and Via Plating (Double-Sided and Multilayer)

For double-sided and multilayer builds requiring vertical interconnectivity:

• Precision UV or CO2 laser drilling systems drill blind microvias (down to 50 µm diameter) through polyimide and copper. Mechanical CNC drilling is reserved for standard through-holes and larger tooling slots.
• Panels undergo chemical plasma desmear cycles to strip away smeared polyimide debris inside the drilled holes.
• A thin seed layer of carbon or electroless copper is deposited inside the holes, followed by electrolytic copper plating to form structural barrel walls (typically 20 µm to 25 µm thick).

Step 4: Coverlay Lamination

1. Polyimide coverlay sheets are pre-cut with CNC routers, punch dies, or lasers to expose component solder pads and ZIF fingers.
2. The patterned coverlay is aligned to the etched panel under microscopic video alignment pins.
3. The panel sandwich is transferred into a vacuum hydraulic lamination press. The machine applies high heat (170°C to 200°C) and pressure (300 to 500 PSI) for 60 to 90 minutes. The thermosetting adhesive flows into the voids surrounding the copper traces and fully cures, sealing the conductors.

Step 5: Stiffener and PSA Application

• FR-4, polyimide, or metal stiffener profiles are machined to custom outlines.
• Stiffeners are positioned onto designated zones on the back of the flex circuit using thermally cured structural adhesives or pressure-sensitive adhesive (PSA) films (such as 3M 467MP).
• Secondary thermal lamination presses bond the stiffeners permanently into place.

Step 6: Surface Finishing

Exposed copper pads receive their final protective metallization:

• ENIG, ENEPIG, Immersion Silver, or Immersion Tin are deposited via chemical immersion lines.
• Gold fingers for ZIF connectors receive hard-gold plating over a barrier layer of nickel.

Step 7: Electrical Testing, Singulation, and Inspection

1. Automated Optical Inspection (AOI): Optical scanners examine fine-pitch trace geometry for neckdowns, mousebites, shorts, and coverlay adhesive bleed.
2. Flying Probe / Flying-Grid Electrical Test: High-speed probes verify 100% net continuity (0Ω path verification) and insulation resistance (checking for leakage shorts up to 250V).
3. Singulation / Profiling: Flexible panels cannot be singulated cleanly with standard high-speed circular V-scoring or mechanical routing saws without creating ragged edge burrs and tears. Singulation is executed using UV laser cutting systems or high-precision mechanical punch dies, producing micro-smooth edges immune to stress-induced tear propagation.

Common Flex PCB Applications

Flexible printed circuits power modern electronics across demanding operating environments.

1. Consumer Electronics and Wearables

• Smartphones & Foldable Displays: Modern foldable phones utilize dynamic polyimide flex circuits built to withstand over 200,000 continuous hinge folding cycles across extreme radii (R < 2 mm). Flex circuits route high-speed display data (MIPI DSI) across the central mechanical hinge.
• Smartwatches and AR/VR Headsets: Space within earbud casings and smartwatches is heavily restricted. Multi-layer flex assemblies contour to curved battery enclosures, mounting heart-rate sensor arrays, microphones, and low-power Bluetooth transceivers in a single folded unit.

2. Medical Devices and Diagnostic Equipment

• Implantable Devices (Pacemakers, Cochlear Implants): Medical implants require absolute biocompatibility, miniaturization, and decade-long operating lifespans. Adhesiveless polyimide micro-flex circuits provide long-term hermetic stability inside titanium pacemaker enclosures.
• Endoscopes and Arthroscopic Probes: Miniature CMOS camera sensors and LED illumination pods sit on the tip of thin, 2-meter-long steerable catheters. Multi-conductor single-sided and double-sided micro-flex circuits run down the articulation shaft, enduring repeated twisting and deflection during surgical maneuvers.

ENDOSCOPE ARTICULATED TIP INTEGRATION:
[CMOS Sensor + LED Arrays]
         │
         └──> [Ultra-Thin Micro-Flex Circuit (< 30µm Thick)]
                     └──> Flexes dynamically inside catheter sheath

3. Automotive Electronics and Electric Vehicles

• EV Battery Management Systems (BMS): Modern lithium-ion EV battery packs (such as those in Tesla, Rivian, and commercial electric platforms) are replacing complex, heavy discrete wire harnesses with large-format flex PCB busbars. These long flex circuits span battery modules, integrating thermistors and cell voltage-sensing taps directly onto one flat, robotically placed strip.
• Steering Wheel Clock Springs: The electrical connection between the stationary steering column and the rotating steering wheel (housing the driver airbag, cruise buttons, and horn) uses a coiled flex circuit. This dynamic flex ribbon winds and unwinds millions of times over the vehicle’s lifespan without signal degradation.

4. Aerospace, Defense, and Industrial Systems

• Satellite Avionics and Deployable Solar Arrays: Launch vehicles impose severe launch-vibration and acoustic shock loads, while space flight introduces thermal swings ranging from -150°C to +150°C. Flex circuits eliminate heavy connector brackets and survive outgassing requirements in high-vacuum environments.
• Industrial Robotics: Multi-axis robotic articulation joints require continuous torsional and bending compliance over years of 24/7 manufacturing cycles. Heavy-duty flex cables route high-resolution encoder signals without fatigue cracking.

Flex PCB vs. Rigid PCB vs. Rigid-Flex PCB: Which Should You Choose?

Selecting the optimal interconnect technology requires balancing spatial complexity, dynamic motion requirements, assembly economics, and component weight.

Architectural Trade-Off Matrix

The following decision matrix evaluates the engineering performance of each technology:

Mechanical / Electrical Factor	Conventional Rigid PCB	Pure Flex PCB (With Stiffeners)	Rigid-Flex PCB
Tight, Non-Planar 3D Enclosures	Very Poor (Planar only)	Exceptional (Folds, wraps, contours)	Exceptional (Conforms seamlessly)
Continuous Cyclic Motion	Incompatible	Optimal Fit (Using RA copper)	Optimal in flex zones only
Initial Fabrication Cost	Lowest	Moderate to High	Highest
Total System Assembly Labor	High (Manual cable routing)	Low (Polarized, one-piece install)	Lowest (Plug-and-play drop-in)
Heavy SMT Component Mounting	Optimal	Fair (Demands FR-4 stiffeners)	Optimal (On rigid board segments)
Resistance to Shock & Vibration	Moderate (Connector fatigue)	High (Near-zero mass)	Maximum (Zero internal headers)
Weight and Volumetric Profile	Bulky and heavy	Extremely light & thin	Low weight, highly compact
Design and Layout Lead Time	Short (Standard tools/rules)	Moderate (Electromechanical check)	Long (Extensive 3D CAD modeling)

Engineering Selection Checklist

Before freezing your electronic system architecture, run through this five-point design checklist:

• 1. Nature of Motion: Will the board experience mechanical movement after the enclosure is sealed? If dynamic, use a Single- or Double-Sided Flex PCB with RA copper. If the bend is strictly flex-to-install, an adhesiveless static flex or rigid-flex PCB is ideal.
• 2. Component Landscape: Are you mounting high-pin-count micro-BGAs, heavy power inductors, or tall aluminum electrolytic capacitors? If yes, standard flex will warp and shear solder joints; you must use either a Rigid-Flex PCB or add thick FR-4 stiffeners directly beneath the component zones.
• 3. Tooling and Unit Economics: Is the product targeting low-volume industrial equipment (< 1,000 units/year) or high-volume consumer goods (> 500,000 units/year)? In low volumes, standard rigid boards with off-the-shelf ribbon jumpers may minimize upfront NRE tooling costs. In high volumes, the labor reduction of a pure flex or rigid-flex PCB offsets initial tooling expenses.
• 4. Impedance & High-Frequency Boundaries: Does the interconnect carry high-speed signals across a mechanical hinge (e.g., PCIe, USB 3.2, HDMI)? If so, avoid discrete ribbon cables. Use an impedance-controlled flex circuit with micro-hatched or solid reference planes.
• 5. Fabricator Collaboration: Have you shared the mechanical DXF/step outline, flex zone definitions, and proposed stackup with your PCB fabricator before finishing final routing? (Failure to confirm material availability and bend ratios early can trigger complete layout redesigns).

Flex PCB Cost Drivers and Limitations

While flexible circuits unlock complex packaging configurations, unoptimized specifications can inflate production costs and impact production yields.

PRIMARY COST INFLATORS:

• High Layer Counts (> 4 layers in flex zones)
• Complex Stiffener Configurations (Mixed materials: FR-4 + Stainless Steel)
• Premium Specialty Substrates (Adhesiveless ultra-thin polyimide, thick RA copper)
• Poor Panel Utilization (< 60% usable board area on production panels)
• Overly Tight Mechanical Tolerances (Laser-cut coverlays < 50µm registration)

Key Cost Drivers

1. Material Selection: High-performance adhesiveless polyimide laminates (e.g., Pyralux AP) cost significantly more than standard FR-4 prepregs. Specifying overly thick polyimide films or exotic metal stiffeners when standard materials suffice directly inflates unit costs.
2. Layer Count Multipliers: Each additional flex layer requires extra drilling, lamination cycles, and laser-cut coverlay films. A 4-layer flex circuit can cost 2.5x to 3.5x more than an equivalent 2-layer flex circuit.
3. Panel Nesting and Utilization: Flex PCBs often feature irregular L-shapes, T-shapes, or sweeping curved geometries to snake around internal chassis features. Nesting irregular polygons onto standard production panels (12 in × 18 in or 18 in × 24 in) can lead to low panel utilization (< 50%), meaning you pay for discarded, etched-away polyimide.
4. Stiffeners and Hand Operations: Multiple localized stiffeners requiring distinct thicknesses or mixed materials (e.g., an FR-4 stiffener on side A and a stainless-steel plate on side B) require multi-stage manual alignment and repeated thermal lamination presses.
5. Testing and Tooling Setup: Testing flex PCBs requires specialized vacuum nest carriers for SMT pick-and-place lines, automated optical inspection programs, and custom flying-probe test fixtures to prevent probing needles from puncturing thin polyimide films.

Inherent Limitations of Flex Technology

• Susceptibility to Mechanical Tearing: While polyimide demonstrates exceptional tensile strength across its planar face, it has low resistance to tear propagation. A microscopic nick, burr, or sharp internal corner produced by a dull routing router will rapidly tear across the entire circuit under slight tension. All internal corners must have generous corner radii (R > 1.5 mm) and include tear-stop copper features.
• Component Assembly Complexity: Flex circuits buckle and sag under the weight of solder paste, pick-and-place nozzles, and the convective air currents of reflow ovens. SMT assembly requires custom precision vacuum fixtures or magnetic carrier pallets to hold the flex completely flat throughout printing, placement, and reflow.
• Higher Rework Difficulty: Due to the thin copper foils and low thermal mass of flexible substrates, desoldering and manual component rework requires precise thermal control. Excessive iron temperature or prolonged dwell time will melt the underlying bonding adhesives, permanently delaminating the copper trace from the polyimide film.

Strategies to Control Costs Early

• Design for Panelization: Align the arms and tails of curved flex boards so they interlock like puzzle pieces on the manufacturing panel, targeting panel utilization above 75%.
• Standardize Stiffeners: Use a single, uniform FR-4 stiffener thickness across the entire design rather than mixing varied thicknesses or combining plastics with metal plates.
• Rationalize Tolerances: Maintain standard coverlay-to-pad clearances (± 0.10 mm to ± 0.15 mm) instead of specifying microscopic laser cutouts (± 0.03 mm) unless fine-pitch BGAs make it strictly necessary.

How to Start a Flex PCB Project

Launching a flexible circuit design requires early cross-functional collaboration between your mechanical, electrical, and fabrication teams.

1. Quantify Constraints: Document your dynamic cycle requirements (static install vs. 500,000 hinge cycles), minimum bend radii, operating thermal range, and high-speed signal impedance targets.
2. Create a 3D Mechanical Paper Mockup: Before touching ECAD software, print the proposed flex outline 1:1 on heavy paper or thin Mylar. Cut it out, fold it, and physically insert it into your 3D-printed enclosure prototype. This simple check frequently uncovers backward connectors, inverted pinouts, twisted flex tails, and assembly pinch-points.
3. Draft the Mechanical Interface: Export precise 2D DXF or 3D STEP models directly from your mechanical CAD tool (e.g., SolidWorks, PTC Creo) into your ECAD layout environment (Altium Designer, Cadence Allegro, KiCad). Ensure that stiffener outlines, bend lines, and housing clearance boundaries are imported accurately.
4. Obtain Factory-Approved Stackup: Request an engineered, factory-validated stackup directly from your PCB fabricator. Let the fabricator specify the exact core thicknesses, copper foil types (RA vs. ED), adhesive layers, and coverlays based on their stocked materials.
5. Route and Validate: Implement IPC-2223 rules—teardrops on all pads, no vias in bend zones, cross-hatched planes, curved routing corners, and staggered transition seams.
6. Prototype and Stress-Test: Order prototypes on fast-turn manufacturing lines. Run assembled boards through real-world dynamic cycle testing, vibration testing, and thermal chamber cycling inside production-intent enclosures.

Frequently Asked Questions

What is a flex PCB used for?

A flex PCB is used to route power and high-speed electrical signals within confined, non-standard, or dynamically articulating spaces. Common applications include smartphone display hinges, wearable medical monitors, automotive steering columns, EV battery management wiring harnesses, laptop screens, DSLR cameras, and avionics flight modules. It replaces conventional wiring harnesses and eliminates bulky board-to-board connectors.

What is the difference between a flex PCB and a rigid-flex PCB?

A pure flex PCB consists entirely of flexible polyimide films, copper foils, coverlays, and optional external stiffeners. A rigid-flex PCB is a hybrid board combining rigid FR-4 layers and flexible polyimide layers laminated into a single structure. In rigid-flex, the flexible layer runs continuously inside the rigid boards, eliminating external connectors, whereas a pure flex circuit terminates in ZIF fingers, solder pins, or board-to-board headers.

Are flex PCBs more expensive than rigid PCBs?

Yes, on a bare-board level, flex PCBs are more expensive than standard rigid FR-4 boards due to the higher cost of raw polyimide materials, custom vacuum lamination processing, laser drilling, and specialized panel-handling steps. However, when evaluated at the total system-assembly level, flex PCBs frequently reduce overall product cost by eliminating connectors, reducing manual assembly labor, eliminating wiring errors, and shrinking enclosure dimensions.

How many times can a flex PCB bend?

A flex PCB designed for static (flex-to-install) applications is rated to bend only a few times during assembly and maintenance. A properly engineered dynamic flex PCB built with single-sided rolled-annealed (RA) copper, an adhesiveless polyimide base, and a conservative bend-radius-to-thickness ratio (R ≥ 30 × T) can endure tens of millions of dynamic bending cycles without micro-fracturing or electrical failure.

What material is used for flex PCBs?

The dominant industry standard is polyimide (PI) for the dielectric base film and coverlay, combined with rolled-annealed (RA) copper for high-flexibility applications or electrodeposited (ED) copper for static circuits. Adhesiveless laminates use direct cast-on polyimide. In low-cost, low-temperature consumer applications (like membrane keyboards), polyester (PET) is occasionally used, though it cannot survive automated reflow soldering temperatures.

Can flex PCBs carry high-speed signals?

Yes. Flex PCBs support high-speed interfaces like PCIe, USB 3.2, MIPI, and HDMI. Because flexible traces are etched with tight lithographic precision on uniform polyimide dielectrics (D_k ≈ 3.2 to 3.5), controlled differential impedance (e.g., 90Ω, 100Ω) can be maintained using coplanar waveguides or stripline configurations with cross-hatched ground reference planes.

What files does a manufacturer need to quote a flex PCB?

To quote and fabricate a flex circuit, provide:

1. Gerber RS-274X or ODB++ files: Including all copper layers, coverlay opening layers, stiffener layers, PSA cutout layers, and silkscreen.
2. Excellon Drill Files: Delineating plated through-holes, non-plated holes, and laser microvias.
3. Detailed Fabrication Drawing: Indicating overall thickness, a detailed stackup drawing, base material specs (IPC-4202/4562), surface finish type, copper foil type (RA vs. ED), stiffener materials/locations, and a map identifying static vs. dynamic bend zones.
4. Mechanical Outline (DXF or STEP): Defining exact board contours, routing tolerances, and bend-line locations.

Conclusion: Select Flex for the Mechanical Problem It Solves

A flexible printed circuit should not be viewed as merely an ultra-thin, pliable replacement for a standard rigid board. It is an electromechanical packaging solution engineered to solve complex three-dimensional integration, continuous motion, and high-vibration challenges that rigid FR-4 and wire harnesses cannot address.

When applied strategically, flexible circuitry eliminates connector failure points, shaves critical grams from mobile payloads, and enables ergonomic, form-fitting industrial designs. Success rests on adhering to strict mechanical rules: calculate your bend radius early, specify rolled-annealed copper for dynamic motion, keep vias and component pads outside the bend zones, apply generous pad teardrops, and bring your PCB fabricator into the design conversation before routing is finalized.

Ready to validate your next flexible interconnect design? Submit your stackup, mechanical outlines, and Gerber files to LEADHUI PCB today for a comprehensive DFM manufacturability review.
