HDI PCB: Stackups, Microvia Design Rules, and What the Extra Cost Actually Buys

When a 0.4 mm ball-pitch BGA lands on your board layout, standard PCB routing hits a physical wall. Dogbone fanouts with conventional 0.2 mm (8 mil) mechanically drilled vias cannot physically route between the balls without violating clearance rules or severing reference planes. At that exact geometry, conventional through-hole PCB manufacturing stops being viable.

You are pushed into High-Density Interconnect (HDI). Yet, most resources treat HDI simply as “smaller traces and pads,” obscuring the critical engineering realities: HDI is an entirely different sequential manufacturing process, and your layer architecture determines your cost and delivery schedule far more than your layer count.

1. What Is an HDI PCB?

Industry discussions often define HDI by component density or nominal trace dimensions, but fabricators define HDI by process. A circuit board becomes an HDI board when it requires sequential build-up lamination, laser-drilled blind or buried microvias, and specialized metallization processes rather than standard single-press through-hole drilling.

The Standards Framework

• IPC-2226 (Sectional Design Standard for HDI Printed Boards): Establishes the baseline definitions for HDI architectures, dividing designs into Type I through Type VI based on interconnect complexity, dielectric structures, and through-hole integration.
• IPC-T-50 (Terms and Definitions): Classifies a microvia as a blind via with a hole diameter of 150 µm (approx. 6 mil) or less, terminated on or within a defined target pad layer.
• IPC-6016: Specifies the qualification and performance requirements for High-Density Interconnect layers and boards.
• IPC-6012 and IPC-4101: Governs rigid performance specifications and base laminate material properties (thermal expansion, glass transition temperature, and decomposition metrics).

Laser Microvias vs. Mechanically Drilled Vias

Mechanical drills reach physical limits below 0.15 mm (6 mil): drill bits break frequently, wandering occurs due to glass weave deflection, and aspect ratios quickly exceed reliable plating thresholds.

Laser microvias, by contrast, are formed using optical ablation to hit target pads on adjacent layers. Because laser drilling removes dielectric down to the target copper pad without penetrating deeper into the core, it frees up routing channels on every underlying layer. Consequently, Via-in-Pad Plated Over (VIPPO) shifts from an expensive design luxury to a standard assembly requirement, eliminating signal stubs and saving board area under fine-pitch components.

2. HDI vs. Standard PCB: When the Extra Cost Actually Pays Off

HDI pays off when routing escape or pin density—not layer count alone—is the binding constraint. If a standard through-hole board with 0.15 mm (6 mil) trace/space can route your netlist by simply adding two inner signal planes, conventional manufacturing will almost always be cheaper and faster.

The Economic Decision Matrix

HDI delivers a net cost reduction only when the technology density offsets system-level costs:

• Layer Count Reductions: Replacing a complex 16-layer through-hole board with a 10-layer 1+N+1 HDI stackup can yield a net cost parity while offering superior signal integrity.
• Enclosure Miniaturization: Moving to HDI often shrinks board area by 30% to 50%, enabling smaller enclosures or freeing internal space for larger batteries.
• Board Consolidation: High routing density allows multi-board sub-assemblies (such as a carrier board plus a compute module) to be collapsed onto a single rigid substrate.

When NOT to Use HDI

Do not specify HDI if:

1. The smallest component pitch on the board is ≥ 0.65 mm.
2. Routing escape can be completed using standard 0.127 mm (5 mil) lines with 0.2 mm mechanically drilled vias without creating severe routing bottlenecks.
3. Your product requires extreme copper weights (≥ 2 oz) on outer build-up layers, which conflict with microvia laser drilling and fine-line etching.

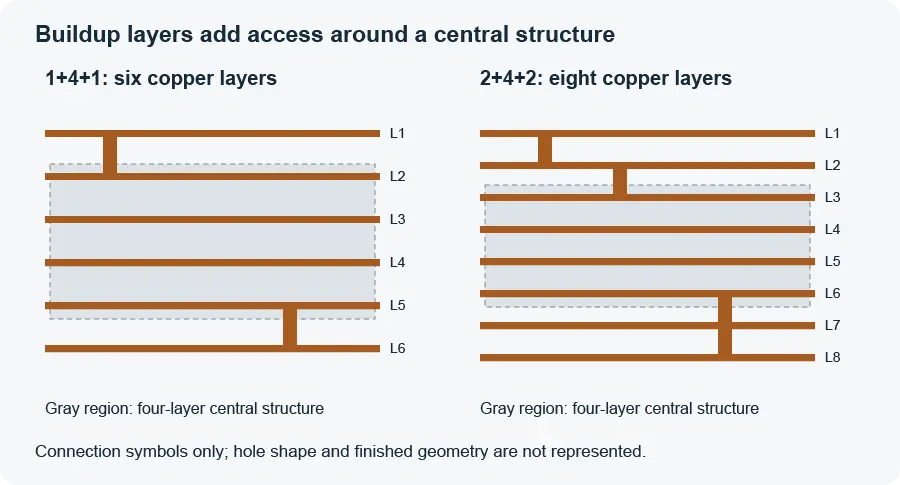

3. HDI Stackup Structures: 1+N+1, 2+N+2, 3+N+3, and ELIC

The core nomenclature of HDI uses the format i+N+i, where:

• N represents the base core (a standard multilayer core, laminated and cured with through-vias or buried vias).
• i represents the number of sequential build-up layers laminated successively to both the top and bottom of the core.

Every increase in i adds an additional lamination cycle in a vacuum press, requiring mechanical drill cycles, laser drill processes, surface preparation, and electroplating. Lamination cycles—not total layer count—drive cost, yield fall-off, and production lead times.

The Architectural Tiers

1+N+1 Architecture

The baseline entry point for HDI. A cured core (N layers) is bounded on both sides by an outer dielectric and foil layer. Microvias run from layer 1 to layer 2, and layer n to layer n-1. The core may contain mechanically drilled buried vias connecting layer 2 to layer n-1. This requires one sequential lamination cycle beyond the core press.

2+N+2 and 3+N+3 Architectures

Used when high-pin-count BGAs require multiple escape rows. Requires two or three separate sequential build-up steps. Microvias can be:

• Staggered: Structurally robust, where the microvia on L1–L2 does not align vertically with the via on L2–L3.
• Stacked: Vias are placed directly on top of each other. Stacked vias require solid copper plating fill on the underlying microvia to prevent resin entrapment and joint failure, adding manufacturing steps and cost.

Every Layer Interconnect (ELIC)

In ELIC, there is no conventional thick core. Every dielectric layer is microvia-drilled and filled with solid electroplated copper, allowing traces and vias to be placed freely on any layer throughout the stackup. ELIC is the standard in high-end smartphones and high-performance compute accelerators, but requires strict design discipline and delivers lower initial fab yields.

First-Pass DFM Yield by Architecture (%)
-----------------------------------------------------------------------
Standard Multilayer (Through-hole)  [=========================] 98%
1+N+1 HDI                           [======================   ] 91%
2+N+2 (Staggered)                   [====================     ] 85%
2+N+2 (Stacked, Cu-filled)          [=================        ] 76%
ELIC                                [==============           ] 63%
-----------------------------------------------------------------------

4. Microvia Design Rules That Survive DFM Review

Most CAM holds and board re-spins in HDI projects stem from microvia geometry issues rather than trace width violations.

Aspect Ratio (Depth-to-Diameter)

The primary constraint of laser microvia manufacturing is the aspect ratio:

Aspect Ratio = Dielectric Thickness (H) / Drill Diameter (D)

Per IPC-6016 and standard capability tables, the maximum reliable aspect ratio for a laser microvia is 0.75:1, with an optimal production target of 0.60:1 to 0.70:1. If your dielectric thickness is 75 μm, the laser drill diameter must not be smaller than 100 μm (0.75:1 ratio). Exceeding this limit causes fluid stagnation in the plating chemistries, resulting in thin, unreliable barrel copper and voiding during electrolytic filling.

Laser Drilling Physics: CO₂ vs. UV

• CO₂ Lasers (Infrared, ～ 9.4 — 10.6 μm): Highly efficient at ablating organic dielectrics and resin matrices, but naturally reflects off copper. Requires an etched copper window (conformal mask) or specialized surface-treated copper foils. Hole sizes are generally limited to ≥ 75 μm.
• UV Lasers (355 nm): Cuts both copper foil and dielectric via photo-chemical ablation. Delivers cleaner hole wall profiles down to 50 μm, but exhibits slower cycle speeds.

Capture Pads and Annular Rings

Laser drilling equipment maintains high beam accuracy, but internal layer expansion and shrinkage across lamination cycles introduces registration tolerance challenges.

• Target Capture Pad Diameter: Drill Diameter + 0.15 mm (6 mil) minimum.
• Minimum Annular Ring: Maintain a minimum of 0.05 mm (2 mil ) annular ring on internal pads to avoid breakout under layer shift.

Via Fill Options

• Electrolytic Copper Plating (Solid Fill): Mandatory for stacked vias and Via-in-Pad Plated Over (VIPPO) structures. Eliminates air entrapment and provides planar surfaces for component assembly.
• Conductive / Non-Conductive Paste Fill: Primarily reserved for mechanically drilled buried vias inside the core prior to build-up lamination. Non-conductive paste is preferred over conductive paste because its Coefficient of Thermal Expansion (CTE) matches the surrounding laminate resin more closely, reducing barrel separation risks.

5. Fine Lines, mSAP, and the BGA Pitch That Forces Your Hand

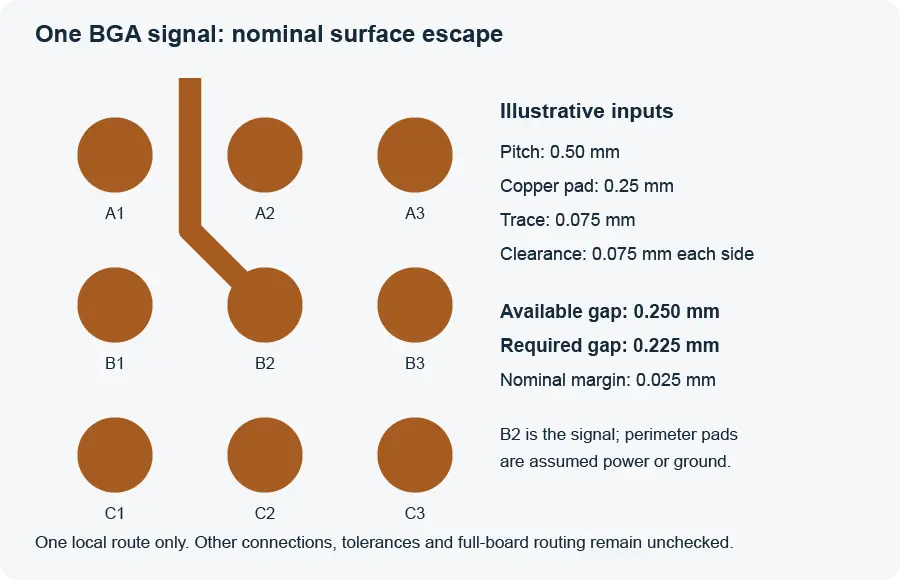

Your component selection—specifically the minimum BGA ball pitch—determines whether you need standard PCB, basic HDI, or advanced semi-additive processing.

BGA Pitch Breakout Rules-of-Thumb
-------------------------------------------------------------------------------
Pitch (mm)   Viable Routing Strategy
-------------------------------------------------------------------------------
≥ 0.80 mm   Standard Through-hole (0.2 mm drill, 0.45 mm pad, Dogbone fanout)
0.65 mm      Standard / Microvia optional (Fine line 0.1 mm / 4 mil)
0.50 mm      1+N+1 HDI Required (Via-in-Pad microvia, 75 µm / 3 mil trace/space)
0.40 mm      2+N+2 HDI Required (Stacked/Staggered microvias, 50 µm / 2 mil)
≤ 0.35 mm   mSAP / Substrate-Like PCB (SLP) Required (Line/Space ≤ 30 µm)
-------------------------------------------------------------------------------

The Subtractive Etching Limit

Traditional PCB fabrication relies on subtractive chemical etching: a laminate clad with continuous copper foil is masked with etch resist, and unshielded copper is dissolved away.

Because isotropic chemical etchants dissolve copper horizontally as well as vertically, traces develop an inward etch taper (trapezoidal profile). As track widths drop below 65 μm (2.5 mil), etch undercutting strips trace adhesion and causes unacceptable impedance variations.

Modified Semi-Additive Process (mSAP)

To escape the limitations of subtractive etching, fabricators deploy mSAP:

1. Start with an ultra-thin copper seed layer (typically 2 to 3 µm) on the dielectric laminate.
2. Apply negative dry-film photoresist, exposing the routing pattern.
3. Electrolytically plate copper into the trenches, forming traces with near-vertical sidewalls.
4. Strip the resist and chemically flash-etch the micro-thin seed layer.

Because the final flash-etch only removes 2 µm of seed material rather than a full 18 µm foil, horizontal undercutting is negligible. This enables uniform line and space geometries down to 30 μm (approx. 1.2 mil). This process underpins Substrate-Like PCBs (SLP), bridging standard HDI boards and integrated circuit (IC) packaging substrates.

6. Materials and Sequential Lamination: What Really Drives Lead Time

Engineers often attribute prototype delays to fab shop backlogs. In reality, HDI lead times scale directly with the physical steps of sequential lamination.

Lead-Time Multiplier by Lamination Cycles
-----------------------------------------------------------------------
1 Press Cycle   (Standard Multilayer)  [ 1.0x ] Baseline
2 Press Cycles  (1+N+1 Build-up)       [ 1.5x ]
3 Press Cycles  (2+N+2 Build-up)       [ 2.2x ]
4+ Press Cycles (ELIC / Advanced)      [ 3.2x ]
-----------------------------------------------------------------------

Every lamination cycle requires:

1. Inner-layer imaging, etch, and automated optical inspection (AOI).
2. Chemical surface pre-treatment (oxide alternative) to promote adhesion.
3. High-temperature, high-pressure vacuum press cure (typically 4–6 hours including ramp and cool-down).
4. Laser drilling of microvias.
5. Desmear and chemical cleaning to eliminate ablation debris from microvia bottoms.
6. Electroless copper seeding and electrolytic copper flash/fill.
7. Surface planarization to remove overplated copper nodules before subsequent imaging.

Multiply this loop three times for a 2+N+2 stackup, and queue-time compounding turns a standard 5-day rapid turn into a 15-to-20-day production run.

Material Considerations

• Thin Dielectrics & Glass Styles: Dielectrics in HDI layers typically range from 40 μm to 100 μm in thickness. Glass cloth weave styles like 106, 1080, and 1078 use spread glass yarns to eliminate gaps in the fabric. This avoids “laser deflections” (where a laser beam wanders when transitioning between resin and glass yarn bundles) and ensures consistent microvia hole geometry.
• Thermal Performance: Because an HDI board undergoes multiple high-temperature lamination cycles and assembly reflow passes, standard FR-4 fails quickly. HDI requires materials with a high glass transition temperature (T_g ≥ 170℃) and high decomposition temperature (T_d ≥ 340℃) to resist delamination.
• Low-Profile Foils: Fine-line HDI designs benefit from Very Low Profile (VLP) or Reverse Treated Foils (RTF). High-roughness standard foils (like standard HTE) protrude into thin dielectrics, increasing insertion loss at multi-gigabit speeds and elevating Conductive Anodic Filament (CAF) failure risks.

7. HDI Reliability: The Failure Modes Worth Designing Around

Individual microvias show strong resistance to thermal expansion strain. Because their depth is shallow (H ≤ 100 μm), the total z-axis thermal expansion within the microvia barrel is minimal compared to a 1.6 mm through-hole barrel.

However, multi-lamination HDI introduces distinct interfacial failure modes.

Primary Microvia Interface Vulnerability

            +---------------+
            |  Microvia N+1 |
            +-------+-------+
                    |
    ========== [Interface Separation Point] ==========
              /     |     \
             /  Microvia N \
            +---------------+

1. Stacked Microvia Interface Separation

The primary microvia failure mode occurs at the junction where a stacked microvia’s base meets the target pad of the underlying microvia. During lead-free reflow (260℃), mismatched expansion rates between the laminate resin and the copper pillar exert shear and tensile stress on the interface. Weak chemical adhesion, micro-voiding, or residual debris causes the microvia to separate from the pad, causing intermittent opens that are notoriously difficult to isolate during bench testing.

Mitigation: Use staggered microvias instead of stacked microvias whenever layout density permits. Staggering offsets the stress axes, allowing the surrounding dielectric to absorb strain without focusing shear loads directly onto an underlying interface.

2. Conductive Anodic Filament (CAF)

In thin HDI dielectrics (<100 μm), high voltage gradients between adjacent power and ground nets create strong electrostatic fields. Moisture combined with trace chemical residues creates an electrochemical pathway along glass fibers, causing subsurface copper filaments to bridge across gaps and trigger dead shorts.

Mitigation: Specify CAF-resistant resin formulations and mandate minimum drill-to-drill edge clearances of at least 0.25 mm for internal layers.

3. Pad Cratering

Large, stiff BGA solder joints exert thermal-mechanical bending loads directly on HDI surface pads. Because the outer build-up dielectric is thin and often unreinforced by heavy woven glass, mechanical strain can cause the resin beneath the pad to shear, tearing the copper pad cleanly out of the laminate.

Mitigation: Use NSMD (Non-Solder Mask Defined) pads with balance-fillet routing, and avoid oversized solder balls on unsupported thin build-up layers.

8. How to Spec an HDI Board for Quote: DFM Handoff Checklist

Submitting an HDI package without prior fabricator alignment is a leading cause of prototype holds and expensive redesigns. Engage your fabricator’s CAM team before completing layout.

The DFM Package Deliverables

1. Explicit Stackup Drawing: Do not provide nominal values only. Document core thickness, prepreg styles (e.g., 1080), copper foil base weights, and targeted cured dielectric heights.
2. Comprehensive Drill Matrix: Separate every drill layer explicitly. Provide distinct files for mechanical through-holes, mechanical buried cores, and individual laser microvia spans (e.g., L1–L2, L2–L3, L(n)–L(n-1)).
3. Plating & Via Fill Table: Explicitly call out which via spans receive IPC-4761 Type VII (VIPPO / solid copper fill) vs. standard paste fills.
4. Impedance Constraints with Dielectric Targets: Define target line widths alongside their designated reference planes, noting that outer fine traces are subject to seed-etch allowances.
5. IPC Class Specification: State whether product qualification requires IPC-6012/6016 Class 2 (general commercial) or Class 3 (high-reliability aerospace/medical).

Fabricator Alignment: 5 Questions to Ask Before Routing

Ask your fabricator these five questions before routing your board:

1. What is your standard production microvia aspect ratio limit, and do you support laser drilling through multi-ply prepregs?
2. Do you require stacked microvias to be staggered on layer transitions, or is solid copper filling certified for full vertical stacks?
3. What is your standard etch compensation for fine lines below 75 µm on outer build-up layers?
4. Do you have qualified high-Tg, CAF-resistant laminates in stock for this proposed stackup, or does the material require custom sourcing?
5. What are your true layer-to-layer registration tolerances for sequential build-up passes?

Aligning your design choices with these fabrication constraints turns HDI from a risky, high-cost hurdle into a reliable tool for high-density electronic design.

An HDI PCB is an engineering compromise: you accept sequential lamination steps, microvia geometry constraints, and higher processing costs in order to route tight ball-pitch components that standard through-hole processes cannot escape.

Keep your stackup at 1+N+1 until pin-escape density forces a shift to 2+N+2. Stagger microvias wherever practical to avoid interface stresses, keep aspect ratios below 0.75:1, and lock in your fab stackup before routing a single trace.
