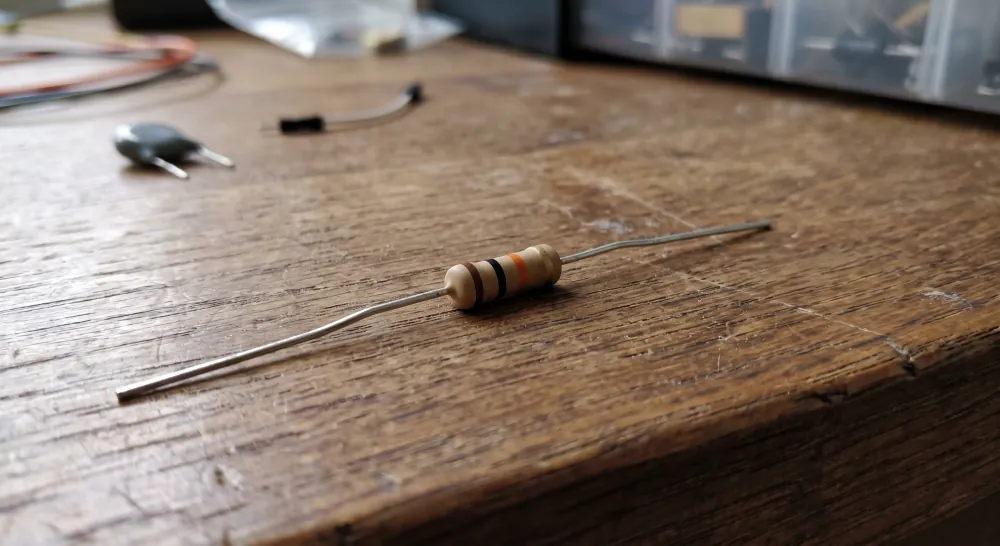

A 10k resistor is a passive electrical component with a nominal resistance of 10,000 ohms (10kΩ). In modern circuit design, it is one of the most ubiquitous values found on breadboards and production PCBs alike.
Engineers and hobbyists turn to 10k resistors because they hit an ideal electrical middle ground: they limit current to safe, microamp-to-milliamp levels without causing excessive battery drain, while remaining low enough in impedance to prevent sensitive digital inputs from picking up stray electrical noise. Whether you are building an Arduino prototype, configuring a microcontroller pull-up, or laying out a multi-layer board, this guide walks through identification, common circuit applications, failure modes, and a direct component selection framework.
What Is a 10k Resistor?
A resistor opposes the flow of electric charge, creating a proportional voltage drop defined by Ohm’s Law:
V = I × R
Where:
- V is voltage (volts, V)
- I is current (amperes, A)
- R is resistance (ohms, Ω)
The metric prefix k stands for “kilo,” denoting a factor of 1,000. Therefore, a 10k resistor provides:
10kΩ = 10 × 10³Ω= 10,000Ω
Current and Power Dissipation Example
If you connect a 10k resistor directly across a steady 5 V DC rail:
- Current (I):
I = V / R = 5 V / 10,000 Ω = 0.0005 A = 0.5 mA - Power Dissipated (P):
P = V × I = 5 V × 0.0005 A = 0.0025 W = 2.5 mW
At 2.5 mW, this operating point is well within the limits of standard 1/8 W (125 mW) or 1/4 W (250 mW) through-hole resistors, as well as compact 0402 or 0603 surface-mount packages.
Like all standard fixed resistors, a 10k resistor is non-polarized—it has no positive or negative orientation and functions identically regardless of which direction current flows through its terminals.
10k Resistor Color Code and SMD Markings
Through-hole resistors use colored bands printed on their cylindrical bodies to denote nominal resistance and manufacturing tolerance, while surface-mount (SMD) components rely on numerical codes stamped onto their ceramic cases.
4-Band 10k Resistor Color Code
The 4-band system is standard on general-purpose through-hole resistors (typically carbon film with a ± 5% tolerance).
| Band Position | Color | Value / Multiplier | Meaning |
| Band 1 (1st Digit) | Brown | 1 | First significant digit |
| Band 2 (2nd Digit) | Black | 0 | Second significant digit |
| Band 3 (Multiplier) | Orange | 10³ (1,000) | Multiply base digits by 1,000 |
| Band 4 (Tolerance) | Gold | ±5% | Margin of manufacturing error |
Calculation:
10 × 10³ Ω = 10,000Ω with a ±5% tolerance range (9,500 Ω to 10,500 Ω)
5-Band Precision 10k Resistor Color Code
Precision metal film resistors (± 1% tolerance or better) add a third significant digit to maintain tighter manufacturing accuracy.
- Band 1 (1st Digit): Brown (1)
- Band 2 (2nd Digit): Black (0)
- Band 3 (3rd Digit): Black (0)
- Band 4 (Multiplier): Red (× 10² or 100)
- Band 5 (Tolerance): Brown (±1%)
Calculation:
100 × 10² Ω = 10,000 Ω with a ±1% tolerance range (9,900 Ω to 10,100)
How to Identify a 10k SMD Resistor
Surface-mount resistors use a 3-digit, 4-digit, or EIA-96 marking system depending on case size and tolerance:
- 3-Digit Code (
103): Found on ±5% tolerance parts. The first two digits are base numbers, and the third is the power-of-ten multiplier:
10 × 10³ = 10,000 Ω (10kΩ) - 4-Digit Code (
1002): Found on ±1% precision parts. The first three digits are base numbers, and the fourth is the multiplier:
100 × 10² = 10,000Ω (10kΩ) - EIA-96 Code (
01C): Used on ultra-compact ±1% parts. Look up01in the EIA-96 lookup table (100) and multiply by letter codeC(100):
100 × 100 = 10,000 Ω (10kΩ) - No Markings: Extremely small packages (such as 0402, 0201, or 01005) lack the physical surface area for text. These components must be verified using multimeter measurements or traced via original component reel labeling.
| 10k RESISTOR IDENTIFICATION COMPARISON | ||
|---|---|---|
| Package Type | Marking Format | Reading / Meaning |
| 4-Band Through-Hole | Brown-Black-Orange-Gold | 1 – 0 – x1k (±5%) |
| 5-Band Through-Hole | Brown-Black-Black-Red-Brown | 1-0-0 – x100 (±1%) |
| 3-Digit SMD (0805+) | 103 | 10 x 10^3 = 10,000Ω |
| 4-Digit SMD (0805+) | 1002 | 100 x 10^2 = 10,000Ω |
| Precision SMD | 01C | EIA-96: 100 x 10^2 |
| Ultra-Small SMD | Blank (Unmarked) | Measure with DMM |
Why Is 10kΩ Such a Common Resistor Value?
The 10k resistor is the de facto “standard” component in circuit design because it hits an optimal balance across four fundamental trade-offs:
- Current Draw vs. Noise Immunity: High-impedance circuit nodes (such as CMOS gates and operational amplifier inputs) draw virtually zero static current. If you use a very low resistor value (e.g., 100Ω) as a pull-up, you waste significant energy whenever the line is pulled low (50 mA at 5 V). If you use a very high value (e.g., 1MΩ), the node becomes susceptible to electromagnetic interference (EMI), capacitive crosstalk, and board leakage currents. 10kΩ provides enough stiffness to resist noise while consuming just 0.33 mA to 0.5 mA on typical 3.3 V and 5 V rails.
- Standardized E-Series Alignment: Resistors are standardized under the international IEC 60063 system into logarithmic Preferred Value series (E6, E12, E24, E96). The number 1.0 is the foundation of every decade scale, ensuring that 10kΩ is available across every supplier, tolerance tier, and package form factor on the market.
- Bill of Materials (BOM) Consolidation: In high-volume manufacturing, standardizing on a single general-purpose value reduces reel changeover costs, unlocks volume procurement discounts, and simplifies inventory control.
Engineering Rule of Thumb: 10kΩ is an excellent initial default for non-critical biasing and static digital pull-ups, but it should be treated as an initial baseline—not an unbreakable rule.
The Most Common 10k Resistor Applications
1. Pull-Up and Pull-Down Resistors for Digital Inputs
High-impedance microcontroller pins (like those on an ESP32, STM32, or ATmega328P) left disconnected will “float,” picking up ambient RF energy and oscillating between logic HIGH and LOW.
- Pull-Up Configuration: A 10k resistor connects the GPIO pin to the positive supply voltage rail (VCC). This holds the pin at a stable HIGH state until an external button or open-drain output actively shorts the pin to ground.
- Pull-Down Configuration: A 10k resistor connects the pin to ground (GND), establishing a default LOW state until a switch applies VCC.
2. Voltage Dividers and Analog Biasing
A two-resistor voltage divider reduces an input voltage to a lower, measurable level:
Vout = Vin × ( R2 / R1 + R2 )
When R1 = R2 = 10kΩ, the ratio simplifies to:
Vout = Vin × ( 10kΩ / 10kΩ+ 10kΩ) = Vin / 2
This symmetrical 50% split is widely used to create a mid-rail reference voltage (VCC / 2) for biasing AC audio signals into single-supply operational amplifiers.
Caution on ADC Loading: Microcontroller analog-to-digital converters (ADCs) typically feature an internal sample-and-hold capacitor. If the equivalent source resistance of your divider exceeds the ADC’s maximum input impedance specification (often 10kΩ), the capacitor will not charge fully during the sampling window, resulting in inaccurate readings.
3. RC Timing, Filtering, and Debouncing
Paired with a capacitor, a 10k resistor forms an RC circuit whose step-response rate is governed by the time constant τ (tau):
τ = R × C
- Practical Switch Debounce Example:
Mechanical switch contacts bounce for 5 to 20 milliseconds when closed. Pairing a 10kΩ resistor with a 2.2μF ceramic capacitor yields:
τ = (10 × 10³ Ω) × (2.2 × 10-6 F) = 0.022 seconds = 22 ms
This provides clean hardware suppression of switch chatter before the signal reaches a digital input pin. - Low-Pass Filter Cutoff:
The -3 dB cutoff frequency (fin) of a 10k RC network is calculated as:
fc = 1 / 2πRC
Using R = 10kΩ and C = 100 nF sets a low-pass filter corner at approximately 159Hz, stripping high-frequency noise from slow sensor lines.
4. Sensor Interfaces
многие resistive sensors—such as Negative Temperature Coefficient (NTC) thermistors and Light Dependent Resistors (LDRs)—require a fixed reference resistor in a voltage divider to translate changing resistance into a variable voltage.
A 10kΩ thermistor is rated at 10kΩ specifically at 25℃. Pairing it with a fixed 10kΩ resistor centers the divider’s output voltage at exactly Vcc/2 at room temperature. This delivers maximum voltage sensitivity (dV / dT) around 25℃, though designers targeting extreme hot or cold zones may deliberately choose a different fixed value to maximize dynamic range at their specific operating setpoint.
When a 10k Resistor Is Not the Right Choice
While versatile, applying a 10k resistor in the wrong subsystem causes severe circuit failures:
| WHEN TO AVOID USING A 10k RESISTOR | ||
|---|---|---|
| Circuit Context | Problem with 10kΩ | Correct Alternative |
| LED Current Limiter | Current too low (<0.3mA) | 150Ω to 1kΩ |
| High-Speed I2C Bus | Rise time violation | 1kΩ to 4.7kΩ |
| Precision Voltage | Thermal drift/loading | Matched Array / 0.1% |
| High Voltage Rail | Voltage arcing/flashover | High-Voltage rated |
1. LEDs and High-Current Indicators
Standard indicator LEDs require between 2 mA and 20 mA to achieve visible illumination. Placing a 10k resistor in series on a 5 V supply starves the diode:
ILED = (Vsupply – Vforward) / R = (5 V – 2.0 V) / 10,000 Ω = 0.3 mA
At 0.3 mA, standard LEDs appear barely visible or completely unlit. Instead, use a resistor between 150Ω and 1kΩ for typical indicators.
2. Fast I²C and High-Capacitance Busses
I²C lines rely on open-drain pull-up resistors to return the data (SDA) and clock (SCL) lines HIGH. The rise time (tr) is constrained by the bus capacitance (CLED) and the pull-up resistance (Rp):
tr ≈ 0.8473 × Rp × Cb
On a 400kHz Fast-mode bus with 100pF of stray trace and connector capacitance, a 10k pull-up produces a rise time of roughly 720ns—violating the I²C Fast-mode maximum rise time specification of 300ns. For fast or heavily loaded buses, use 1.8kΩ to 4.7kΩ pull-ups instead.
3. Precision, High-Voltage, and Low-Noise Circuits
- Thermal Noise (Johnson-Nyquist Noise): Resistor noise voltage is directly proportional to resistance (vr = √4 kbTR Δf). In ultra-low-noise preamplifiers, high resistor values degrade the signal-to-noise ratio (SNR).
- Voltage Rating Limits: Standard 0805 or 1/4 W resistors carry continuous working voltage limits of 150V to 250V. Exceeding this rating causes dielectric breakdown across the element, regardless of whether you are within the nominal wattage rating.
How to Choose the Right 10k Resistor
Selecting the appropriate 10k resistor requires matching four engineering parameters to your application:
1. Tolerance and Temperature Coefficient
- ±5% (General Purpose): Ideal for breadboarding, basic digital pull-ups/pull-downs, and contact debouncing.
- ± 1% or ± 0.1% (Precision): Essential for op-amp feedback loops, instrumentation dividers, and active filter stages where gain accuracy must remain invariant.
- Temperature Coefficient of Resistance (TCR): Expressed in ppm /℃, TCR defines how much resistance drifts with thermal changes. Thin-film components often provide stable ratings below 25 ppm /℃, whereas standard carbon film parts can drift by ±350 ppm / ℃ or more.
2. Power and Voltage Ratings
Calculate operating power dissipation using:
P = V² / R = I² R
Always apply a 50% engineering derating rule for thermal reliability: choose a resistor rated for at least double your worst-case continuous power dissipation. If your 10k resistor dissipates 100mW, select a component rated for at least 250mW (1/4 W).
3. Package and Technology Selection
| Resistor Technology | Typical Tolerance | Primary Advantages | Common Disadvantages | Best Used For |
| Carbon Film | ± 5% | Low cost, handles energy surges well | High thermal drift, high electrical noise | General breadboarding, educational circuits |
| Metal Film | ± 0.5% to ±1% | Low noise, tight tolerance, low TCR | Slightly higher cost | Audio processing, active analog filters |
| Thick Film (SMD) | ± 1% to ± 5% | Extremely low unit cost, small footprint | Moderate noise, medium stability | General consumer electronics, digital pull-ups |
| Thin Film (SMD) | ± 0.05% to ± 0.5% | Superior linearity, ultra-low noise and drift | Higher cost, sensitive to moisture/ESD | Medical devices, precision instrumentation |
How to Test a 10k Resistor with a Multimeter
- De-energize the Circuit: Turn off all power supplies and discharge any large filter capacitors in the system.
- Isolate the Component: If testing a resistor on an assembled PCB, desolder and lift at least one lead (or pad). Measuring a resistor while fully soldered in-circuit allows current to travel through alternate parallel paths, yielding artificially low resistance readings.
- Configure the Digital Multimeter (DMM): Set the dial to resistance mode (Ω). If using a manual-ranging meter, select the 20 kΩ range.
- Connect the Probes: Place the black and red probe tips firmly against the two exposed leads or metal end-caps. Resistors are non-polarized, so probe orientation does not matter.
- Evaluate the Reading Against Tolerance Limits:
- ± 5% Tolerance Part: Valid reading falls between 9.50kΩ and 10.50kΩ.
- ± 1% Tolerance Part: Valid reading falls between 9.90kΩ and 10.10kΩ.
- An Open Loop (OL / ∞) display indicates an internal open-circuit break, while a reading near 0Ω signifies a shorted component.
Frequently Asked Questions
What colors are on a 10k resistor?
A standard 4-band ±5% 10k resistor has four bands: Brown, Black, Orange, and Gold. A precision 5-band ±1% 10k resistor displays Brown, Black, Black, Red, and Brown.
What does “103” mean on an SMD resistor?
The code 103 uses three-digit EIA notation: the first two digits (10) represent the base number, and the third digit (3) indicates the multiplier 10³ (1,000). Multiplying 10 × 1,000 yields 10,000Ω, or 10kΩ.
Why are 10k resistors standard for microcontroller pull-ups?
Microcontroller input pins have high internal input impedance (>10 MΩ). A 10k resistor provides enough current to reliably clamp the pin to Vcc or GND against stray electromagnetic fields, while limiting wasted current to just 0.33 mA on 3.3V rails when pulled in the opposite direction.
Can I substitute a 10k resistor with 4.7kΩ or 100kΩ?
It depends on the sub-circuit. For general push-button pull-ups, a 4.7kΩ resistor works well (drawing marginally more current), and a 100kΩ resistor functions in low-noise environments. However, in timing circuits (RC), analog active filters, or matched voltage dividers, replacing a 10k resistor with another value alters corner frequencies and output voltages.
Is a 10k resistor suitable for powering an LED?
Generally, no. A 10k resistor on a standard 3.3V or 5V rail limits current to below 0.3mA, leaving standard indicator LEDs extremely dim or invisible. Use a 150Ω to 1kΩ resistor instead for standard indicator brightness.
What wattage rating should I choose for a 10k resistor?
For low-voltage digital and analog circuits (3.3V to 12V), power dissipation is under 15mW, making standard 1/8W (125mW) or 1/4W (250mW) through-hole packages, as well as 0402/0603 SMD packages, more than adequate.
Conclusion
The 10k resistor is a foundational building block in electronics because it provides a reliable balance between low power dissipation, effective noise immunity, and broad supply chain availability. While it serves as an excellent initial default for pull-up lines, basic debouncing, and reference dividers, circuit performance always depends on matching the specific power, tolerance, and frequency constraints of your design. Always verify your current demands and timing budgets before committing to final component values.
