A rigid PCB is a non-flexible printed circuit board constructed from solid substrate materials—most commonly fiberglass-reinforced epoxy like FR-4—designed to mechanically support and electrically connect electronic components in a fixed form factor. It remains the foundational standard for modern electronics due to its unmatched mechanical stability, high component density, broad material compatibility, and cost-effective scalability. Use this guide to evaluate layer counts, core laminates, thermal strategies, and quote-ready design-for-manufacturability (DFM) requirements before releasing your board to production.
What Is a Rigid PCB?
A rigid PCB (rigid printed circuit board) is an inflexible electronic circuit board manufactured using solid, structurally stable dielectric substrate cores reinforced with conductive copper layers. Unlike circuits built to bend during operation or installation, a rigid board provides a sturdy, mechanically unyielding base that maintains its dimensional profile under dynamic operating conditions, thermal cycling, and physical handling.
What Makes a PCB “Rigid”?
Three core engineering properties establish the mechanical rigidity of these boards:
- Dimensional and Flexural Stability: Built on cured dielectric bases such as woven glass cloth impregnated with epoxy resin (e.g., FR-4), the core exhibits high flexural modulus and tensile strength. It resists twisting, sagging, and deformation when populated with heavy power modules, connectors, or large integrated circuits (ICs).
- Robust Component-Mounting Platform: High-density surface-mount technology (SMT), ball grid arrays (BGAs), and through-hole technology (THT) demand flat coplanarity. A rigid substrate eliminates joint deflection and shear strain on brittle solder connections during thermal expansion and mechanical vibration.
- Fixed Enclosure Compatibility: Rigid boards act as structural members inside fixed-chassis systems, card cages, and standardized enclosures. They slot directly into rails, secure to standoffs, and provide predictable connector alignment across mating sub-assemblies.
What a Rigid PCB Is Not
A rigid PCB is distinctly different from alternative interconnect technologies:
- Flexible PCBs (Flex Circuits): Flex circuits use ductile polyimide (PI) or polyester films, enabling the assembly to flex dynamically (e.g., within a camera hinge) or fold statically into compact spaces.
- Rigid-Flex PCBs: Hybrid systems that combine rigid FR-4 sections with integrated internal flex layers to eliminate external wiring harnesses and multi-board connectors.
For a deeper dive into moving assemblies, review our detailed guide on flex PCB vs. rigid PCB.

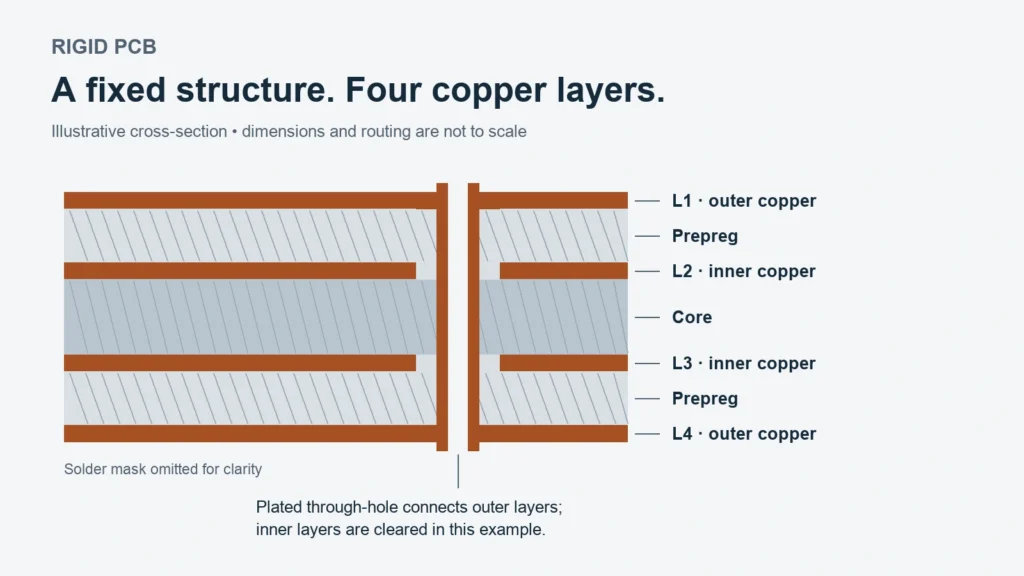

How Is a Rigid PCB Constructed?
A rigid board’s electrical performance, high-speed signal integrity, thermal dissipation, and long-term reliability are directly dictated by its internal stack-up rather than just its visible top and bottom traces.
TYPICAL 4-LAYER STACK-UP
[Layer 1: Top Signal] ═════════════════════════ Copper Foil (0.5 oz / 1 oz)
░░░░░░░░░░░░░░░░░░░░░░░░░ Prepreg (Dielectric B-Stage)
[Layer 2: Ground Plane] ───────────────────────── Inner Copper Foil
█████████████████████████ FR-4 Core (Cured C-Stage)
[Layer 3: Power Plane] ───────────────────────── Inner Copper Foil
░░░░░░░░░░░░░░░░░░░░░░░░░ Prepreg (Dielectric B-Stage)
[Layer 4: Bottom Signal]═════════════════════════ Copper Foil (0.5 oz / 1 oz)
Core Layers of a Rigid PCB
- Substrate/Core Material: Fully cured fiberglass cloth saturated with epoxy resin (C-stage material) clad on both sides with copper foil. It establishes base board thickness and fundamental electrical properties (such as dielectric constant, Dk, and loss tangent, Df).
- Prepreg (Pre-impregnated Bonding Sheet): Semi-cured fiberglass resin cloth (B-stage). During vacuum hydraulic lamination under heat (170–200℃) and pressure, the resin flows, fills copper trace gaps, and cross-links to bond internal cores into a solid monolithic block.
- Copper Foil and Conductor Layers: Electrodeposited (ED) or rolled annealed (RA) copper foil patterned into traces, power planes, and reference planes via photolithography and chemical etching.
- Solder Mask: A liquid photoimageable (LPI) polymer coated over outer layers to insulate non-soldered copper regions, preventing accidental solder bridging, oxidation, and environmental moisture ingress.
- Silkscreen (Legend): High-contrast, non-conductive epoxy ink printed over the solder mask showing component reference designators, pin-1 markers, polarity indicators, test points, and safety markings.
- Surface Finish: A metallic or organic coating applied to exposed copper pads to ensure solderability and protect raw copper from oxidation prior to assembly.
How Vias Connect Layers
Interlayer signal routing and power distribution rely on conductive pathways drilled through the board and electroplated with copper:
Through-Hole Via Blind Via Buried Via Microvia (HDI)
(Top-to-Bot) (Layer 1 to 2) (Layer 2 to 3) (Laser Drilled)
┌──┐ ┌──┐ ┌──┐ ┌──┐ ┌──┐ ┌──┐
===│ │=======│ │=====│ │=======│ │========================│ │=======│ │=== [L1]
│ │ │ │ │ │ │ │ ┌──┐ ┌──┐ └──┘───────└──┘
---│ │-------│ │-----└──┘-------└──┘-----│ │------│ │----------------------- [L2]
│ │Core │ │ │ │ Core │ │
---│ │-------│ │-------------------------│ │------│ │----------------------- [L3]
│ │ │ │ └──┘──────└──┘
===│ │=======│ │============================================================== [L4]
└──┘ └──┘
- Plated Through-Hole (PTH) Vias: Drilled mechanically completely through the board from top layer to bottom layer. Cost-effective, robust, and compatible with all standard fabrication lines.
- Blind Vias: Mechanically or laser-drilled from an outer surface layer to one or more internal layers without penetrating the entire board.
- Buried Vias: Positioned strictly between internal layers, drilled and plated in inner cores prior to final multi-layer lamination, completely hidden from the outer surfaces.
- Microvias (HDI Designs): Ultra-small laser-drilled vias (≦150μm diameter) typically spanning only one dielectric layer (1:1 aspect ratio). Stacked or staggered microvias allow ultra-dense routing for fine-pitch BGAs (<0.65 mm pitch) in high-density interconnect (HDI) rigid boards.
Fabrication Standard Reference: Layer stack-up constructions, core thicknesses, and copper foil tolerances must be validated in accordance with IPC-2221 (Generic Standard on Printed Board Design) and IPC-2222 (Sectional Design Standard for Rigid Organic Printed Boards).
Types of Rigid PCBs
Rigid circuit boards are classified by their layer configuration and specialized operating parameters.
RIGID PCB ARCHITECTURES
│
┌───────────────────────────┴───────────────────────────┐
▼ ▼
[By Layer Architecture] [By Functional Specialty]
├── Single-Sided ├── Heavy Copper (High Current)
├── Double-Sided (PTH) ├── High-Tg (Thermal Resilience)
└── Multilayer (4 to 64+ Layers) ├── High-Frequency / RF (Low Loss)
└── Metal-Core / IMS (Thermal Relief)
Classification by Layer Count
1. Single-Sided Rigid PCBs
- Structure: Features conductive copper circuitry laminated to only one side of a rigid dielectric substrate, with component mounting and solder joints accessible on the opposite or same side.
- Best-Fit Applications: Low-frequency, cost-sensitive consumer appliances, basic power supplies, LED indicator arrays, and single-function sensors.
- Limitations: Extreme routing constraints with zero trace-crossing capabilities (requiring zero-ohm jumper resistors). Lacks continuous reference planes, resulting in poor electromagnetic compatibility (EMC).
2. Double-Sided Rigid PCBs
- Structure: Conductive copper circuitry patterned on both top and bottom surfaces of a rigid base, interconnected via plated through-holes (PTH).
- Best-Fit Applications: Industrial motor controllers, analog audio amplifiers, power conversion boards, UPS systems, and intermediate instrumentation.
- Advantages: Unlocks trace crossovers, doubles routing area, and enables simultaneous double-sided SMT and through-hole assembly.
3. Multilayer Rigid PCBs
- Structure: Three or more conductive copper layers separated by cured dielectric cores and prepreg bonding sheets, bound under high-pressure thermal lamination (commonly 4 to 32 layers, scaling beyond 64 layers for enterprise backplanes).
- Best-Fit Applications: High-speed computing, networking equipment, complex FPGA modules, automotive engine control units (ECUs), and medical imaging devices.
- Advantages: Incorporates dedicated solid ground and power planes to ensure low-impedance power distribution networks (PDN), controlled impedance transmission lines (50Ω single-ended, 90/100Ω differential), and critical electromagnetic interference (EMI) containment. Learn more in our multilayer PCB design guide.
Specialized Rigid PCBs
| Specialized Type | Core Characteristics | Primary Applications | Engineering Benefit |
|---|---|---|---|
| Heavy Copper PCB | Copper weights ranging from 3oz/ft² to 20+ oz/ft² (105-700+μm). | Power distribution units, automotive EV powertrains, industrial rectifiers. | Carries high continuous currents and surge loads without excessive thermal rise; eliminates external bus bars. |
| High-Tg PCB | Glass transition temperature (Tg) exceeding 170℃ to 180℃; high decomposition temp (Td ≧ 340℃). | Under-the-hood automotive, down-hole drilling, multi-pass lead-free reflow. | Prevents Z-axis thermal expansion from fracturing PTH barrels during prolonged thermal stress. |
| High-Frequency / RF | Low dielectric constant (Dk ≦ 3.5) and ultra-low loss tangent (Df ≦ 0.002) using PTFE or hydrocarbon ceramics. | 5G/6G base stations, radar modules, satellite transceivers, aerospace communication. | Minimizes signal attenuation, phase distortion, and dielectric losses at microwave/millimeter-wave frequencies. |
| Metal-Core (MCPCB) | Aluminum or copper base plate isolated from circuit layers by a thermally conductive dielectric. | High-power solid-state LED arrays, solar inverters, automotive headlamps. | Delivers thermal conductivities up to 1-8 W/m·K to direct heat away from critical component junctions. |
Explore detailed specifications in our focused guides on heavy copper PCB, high-Tg PCB, and high-frequency PCB design.
Rigid PCB vs. Flex vs. Rigid-Flex
When selecting an interconnect architecture, engineering teams must evaluate mechanical packaging freedom against fabrication cost, assembly yield, and structural rigidity.
| Decision Factor | Rigid PCB | Flex PCB (FPC) | Rigid-Flex PCB |
|---|---|---|---|
| Mechanical Form | Fixed, unyielding planar structure. | 3D bendable, dynamically flexing. | Hybrid: static rigid zones with dynamic/bendable flex sections. |
| Base Material | Woven glass / Epoxy (FR-4), Ceramic, Metal Core. | Polyimide (Kapton), Polyester (PET) film. | Combination of FR-4 and Polyimide cores. |
| Fabrication Complexity | Standard (Lowest). | High (Requires special handling and stiffeners). | Very High (Multiple lamination, etching, and cut-back stages). |
| Relative Unit Cost | Low to Moderate (1×). | Moderate to High (2×-3×). | High to Extreme (4×-7×). |
| Assembly Handling | Standard SMT pick-and-place; zero tooling carriers needed. | Requires custom vacuum fixtures and carrier trays. | Requires specialized tooling and structural support during SMT. |
| Best-Fit Use Case | Fixed enclosures, backplanes, motherboards, power supplies. | Moving printheads, wearables, camera hinges. | Compact aerospace avionics, medical implants, high-reliability military sensors. |
INTERCONNECT SELECTION LOGIC
│
Is your enclosure dynamic, folding, or 3D-curved?
│
┌──────────────┴──────────────┐
YES NO
│ │
Does the design require continuous ▼
high-density SMT & heavy components? [ CHOOSE RIGID PCB ]
│ • Maximum mechanical support
┌────────┴────────┐ • Lowest unit fabrication cost
YES NO • Predictable SMT yields
│ │
▼ ▼
[ CHOOSE RIGID-FLEX ] [ CHOOSE FLEX PCB ]
Choose a Rigid PCB when:
- The electronic enclosure has a defined, fixed mechanical geometry.
- Large, heavy components (transformers, heat sinks, large inductors, large-body BGAs) require structural support against vibration.
- Predictable high-volume fabrication cost control and standard SMT automated assembly are paramount.
- Maximum layer counts (>16 layers) are required for high-density routing and backplane switching.
Consider Flex or Rigid-Flex when:
- The circuit must execute dynamic flex cycles during product lifetime (e.g., laptop hinges, robotic arms).
- Space and weight constraints in miniature enclosures (e.g., hearing aids, wearables) rule out wire harnesses, discrete cables, and bulky board-to-board headers.
Rigid PCB Materials and Surface Finishes
Board reliability hinges on pairing the correct laminate properties and surface finishes to the target operating environment.
1. Selecting the Right Laminate
Laminate selection determines the maximum temperature limit, chemical resistance, and dielectric integrity of the PCB.
KEY LAMINATE SELECTION PROPERTIES
┌─────────────────────────────────────────────────────────────┐
│ Tg (Glass Transition Temp) : Matrix softens (130-180°C) │
│ Td (Decomposition Temp) : Resin loses 5% mass (>340°C) │
│ CTE (Z-axis) : Expansion rate (30-60 ppm/°C) │
│ Dk (Dielectric Constant) : Signal speed / Capacitance │
│ Df (Loss Tangent) : Signal attenuation factor │
└─────────────────────────────────────────────────────────────┘
- Standard FR-4 (Tg 130-140℃): General-purpose electronics, commercial consumer devices, toys, and simple controllers operating in stable ambient conditions.
- Mid/High-Tg FR-4 (Tg 150-180℃, e.g., Isola 370HR, Shengyi S1000-2): Essential for multi-layer lead-free RoHS soldering profiles (peak reflow ～ 260℃), automotive under-hood systems, and industrial electronics requiring minimal Z-axis expansion to protect microvias.
- Low-Loss High-Speed Laminates (e.g., Rogers 4350B, Panasonic Megtron 6, Nelco N4000): Tailored for high-speed digital busses (>10Gbps) and RF applications (>2.4GHz) where dielectric loss (Df < 0.003) and stable Dk over frequency are required.
- Halogen-Free Laminates: Specified for consumer mobile devices, green tech, and European Union environmental standards requiring bromine and chlorine levels below 900ppm each (<1500ppm total).
2. Copper Weight and Thickness
Base and finished copper weights must be driven by trace current capacity, acceptable temperature rise (Δ T), and minimal trace pitch constraints:
- 0.5 oz/ft² (17.5 μm): Ideal for standard internal signal layers and fine-pitch external routing (<4mil lines and spaces).
- 1.0 oz/ft² (35 μm): Standard default for power rails, low-to-medium power signal traces, and external layers.
- 2.0 oz/ft² to 3.0 oz/ft² (70-105 μm): Required for high-power switching regulators, motor drivers, and industrial automation. Higher copper weights require wider spacing rules (e.g., minimum 8-10 mil space for 2 oz copper) due to chemical etching undercut.
3. Surface-Finish Selection
SURFACE FINISH ATTRIBUTES
┌───────────┬───────────────────┬─────────────────┬─────────────────┐
│ Finish │ Flatness │ Shelf Life │ Typical Cost │
├───────────┼───────────────────┼─────────────────┼─────────────────┤
│ HASL │ Non-Planar (Poor) │ High (12-24 mo) │ Lowest │
│ ENIG │ Exceptionally Flat│ High (12-24 mo) │ Moderate-High │
│ OSP │ Perfectly Flat │ Low (6 mo) │ Low │
│ Imm. Tin │ Exceptionally Flat│ Low-Mid (6-9 mo)│ Moderate │
│ Imm. Ag │ Exceptionally Flat│ Mid (6-12 mo) │ Moderate │
└───────────┴───────────────────┴─────────────────┴─────────────────┘
- HASL / Lead-Free HASL (Hot Air Solder Leveling): Molten solder blown flat with air knives. Highly durable and economical, but exhibits uneven surface topography unsuitable for fine-pitch BGAs (<0.8 mm) or ultra-small components (<0402).
- ENIG (Electroless Nickel Immersion Gold): Chemical nickel barrier layer (3-6μm) covered by immersion gold (0.05-0.1μm). Offers absolute planarity, excellent shelf life, superior wire-bonding properties, and solid wear resistance on edge connectors and contact pads.
- OSP (Organic Solderability Preservative): Water-based organic compound applied to raw copper. Flat and inexpensive, but sensitive to multiple reflow thermal passes and exhibits a short shelf life.
- Immersion Tin (ISn) / Immersion Silver (IAg): Flat metallic finishes ideal for press-fit connectors and high-speed signal channels (avoids the high-frequency nickel loss inherent in ENIG). Prone to tarnishing and tin whiskering if stored incorrectly.
Material and Finish Selection Framework
| Engineering Requirement | Recommended Board Property | Critical DFM / Sourcing Consideration |
|---|---|---|
| High Current (≥20 A continuous) | ≥ 2-4 oz Finished Copper; High-Tg (170℃)FR-4. | Expand trace width/spacing rules; enforce minimum drill-to-copper clearances to prevent dielectric breakdown under thermal load. |
| High Ambient Temperature (>85℃) | High-Tg (170-180℃), Low Z-CTE (<45 ppm/℃), Td ≥ 345℃. | Specify material brands explicitly on fabrication drawings (e.g., Shengyi S1000-2M or Isola 370HR) to prevent unauthorized vendor material swaps. |
| Fine-Pitch BGA ( ≤ 0.5mm pitch) | ENIG or Immersion Silver; 0.5 oz start copper; laser microvias (HDI). | Enforce solder mask defined (SMD) or non-solder mask defined (NSMD) pad rules per manufacturer’s minimum solder dam capabilities (≥ 3.5 mil). |
| High-Speed Digital (≥ 10Gbps / PCIe 5.0) | Low-loss laminate (Df ≤ 0.004); smooth copper foil (VLP/HVLP); ENIG/IAg. | Control dielectric thickness variation to ± 10%; specify trace width tolerance to ± 0.5mil; match reference planes continuously without split-plane crossing. |
| Cost-Sensitive High-Volume Consumer | Standard FR-4 (Tg 135-140℃); 1 oz copper; Lead-Free HASL or OSP. | Standardize panel dimensions (18 × 24in or 12 × 18in) to maximize panel utilization (>85%); minimize unique drill bit sizes (<6 distinct sizes). |
Rigid PCB Design Considerations
Optimal rigid board design requires concurrent planning across schematic, mechanical, stack-up, and thermal domains from day one.
RIGID PCB INTEGRATED DESIGN WORKFLOW
┌───────────────────────┐
│ 1. Define Constraints │ Mechanical size, max current, high-speed nets, operating temp
└──────────┬────────────┘
▼
┌───────────────────────┐
│ 2. Plan the Stack-Up │ Symmetrical layers, impedance targets, ground plane spacing
└──────────┬────────────┘
▼
┌───────────────────────┐
│ 3. Layout & Routing │ Trace spacing, thermal vias, return paths, keepouts
└──────────┬────────────┘
▼
┌───────────────────────┐
│ 4. Apply DFM Rules │ Annular rings, copper-to-edge, solder dams, acid traps
└──────────┬────────────┘
▼
┌───────────────────────┐
│ 5. Generate Outputs │ Gerber RS-274X/ODB++, drill tables, IPC-6012 Class 2/3 notes
└───────────────────────┘
1. Define Electrical and Mechanical Requirements
- Operating Environment: Determine operating temperature ranges, vibration profiles, humidity exposure, and the required IPC class (IPC Class 2 for commercial standard, IPC Class 3 for high-reliability medical/aerospace).
- Current and Voltage Clearances: Calculate minimum trace widths for continuous power delivery using IPC-2152 charts. Enforce isolation clearances based on peak operating voltage to prevent high-voltage dielectric breakdown according to IPC-2221B tables.
- Mechanical Constraints: Map 3D enclosure bounds, tooling hole positions, connector locations, keep-out zones (KOZ), and maximum component height limits.
2. Plan the Stack-Up and Impedance Strategy
- Symmetry: Maintain a strictly symmetrical stack-up relative to the board’s center core. Asymmetrical distribution of copper thickness, prepreg styles, or core layers causes board warpage and twist (IPC-6012 limits warpage to ≤ 0.75% for SMT boards).
- Reference Planes: Every critical high-speed signal layer must be adjacent to an unbroken, continuous ground reference plane (0 V) to provide a low-inductance return current path and reduce radiated emissions.
- Controlled Impedance: Calculate trace geometries (single-ended 50Ω, differential 90Ω USB / 100Ω Ethernet) based on exact prepreg/core dielectric constants provided by your specific fabricator. Learn more in our PCB stack-up design and controlled impedance PCB guides.
3. Design for Power Integrity and Thermal Management
- Solid Planes vs. Starved Planes: Avoid placing high densities of through-hole vias in close clusters on power/ground planes; overlapping clearance cutouts (“swiss-cheese effect”) form thermal chokepoints and increase plane impedance.
- Thermal Relief and Via Arrays: Use thermal relief pads for through-hole connections to large copper planes to prevent excessive heat sinking during soldering. Place thermal via arrays (0.3 mm drill, 1.0 mm pitch, filled and capped per IPC-4761 Type VII) directly beneath exposed ground pads of power ICs.
- Copper Pours: Use copper balance hashing on sparsely populated signal layers to ensure uniform copper plating across the entire manufacturing panel. Check out our comprehensive PCB thermal management guide.
4. Apply Layout and Manufacturability (DFM) Rules
- Trace Width / Spacing: Standard fabrication limits typically support 4/4 mil (0.1 mm) lines and spaces for standard outer layers. Advanced high-density lines support down to 3/3 mil or smaller with modified semi-additive processes (mSAP).
- Annular Rings: Ensure minimum finished annular rings meet IPC standards: minimum ≥ 3.5 mil for Class 2, and ≥ 5 mil for Class 3 to eliminate drill breakout risks during mechanical drilling.
- Aspect Ratio: Keep the aspect ratio (Board Thickness : Drill Hole Diameter) below ≤ 8:1 (e.g., 0.2 mm drill in a 1.6 mm thick board) for standard mechanical drilling. Exceeding 10:1 to 12:1 increases plating failure risk, voids in barrel plating, and higher fabrication cost.
- Edge Clearances: Keep copper traces at least 20 mil (0.5 mm) away from outer board routing edges (40 mil for V-score channels) to prevent copper exposure and delamination during board separation.
ACCEPTABLE DRILL CENTERING DRILL BREAKOUT (FAIL: IPC CLASS 2/3)
┌───────────────────────────┐ ┌───────────────────────────┐
│ ┌───────────────┐ │ │ ┌───────────────┐ │
│ │ ( Drill ) │ │ │ │ ( Drill ) │ │
│ └───────────────┘ │ │ └───┬───────┬───┘ │
│ Annular Ring │ │ │Break- │ │
└───────────────────────────┘ └──────┴out!───┴────────────┘
Even annular ring around pad. Hole breaches copper boundary edge.
5. Standards and Documentation
Fabrication packages must reference industry specifications to ensure supplier accountability:
- IPC-2221 / IPC-2222: Rigid board design standards and electrical spacing rules.
- IPC-6012: Qualification and Performance Specification for Rigid Printed Boards (Class 1: General, Class 2: Dedicated Service, Class 3: High Reliability).
- IPC-A-600: Acceptability of Printed Boards (incoming visual inspection standards).
- IPC-4761: Design guide for protection of printed board via structures (tented, plugged, filled, capped).
How Rigid PCBs Are Manufactured and Tested
Rigid circuit board manufacturing is a multi-step chemical, mechanical, and optical fabrication process.
┌─────────────────┐ ┌─────────────────┐ ┌─────────────────┐
│ CAM & Tooling │ ───► │ Inner Layer Fab │ ───► │ Hot Lamination │
│ Design Review │ │ Imaging & Etch │ │ Core + Prepreg │
└─────────────────┘ └─────────────────┘ └────────┬────────┘
│
┌─────────────────┐ ┌─────────────────┐ ┌────────┴────────┐
│ Solder Mask & │ ◄─── │ Outer Layer Fab │ ◄─── │ Mechanical / │
│ Surface Finish │ │ Drill & Plate │ │ Laser Drilling │
└────────┬────────┘ └─────────────────┘ └─────────────────┘
│
▼
┌─────────────────┐ ┌─────────────────┐ ┌─────────────────┐
│ AOI & Electrical│ ───► │ Routing / │ ───► │ Vacuum Pack & │
│ Continuity Test │ │ V-Scoring │ │ Final Out-Box │
└─────────────────┘ └─────────────────┘ └─────────────────┘
Main Fabrication Stages
- CAM Review and Material Prep: Engineering CAM verification analyzes user Gerber/ODB++ files, adjusts for manufacturing etch compensation factors, and panels the boards for production lines.
- Inner Layer Imaging and Etching (Multilayer): Copper-clad cores are coated with photosensitive dry film, exposed to UV light via direct laser imaging (LDI), and chemically etched to define the inner circuit patterns.
- Automated Optical Inspection (Inner AOI): High-resolution digital scanners compare etched inner cores against CAD vector designs to verify zero shorts or open circuits prior to lamination.
- Lamination: Inner cores, prepreg sheets, and outer copper foil sheets are stacked under optical pin registration and subjected to high-temperature vacuum hydraulic pressing to form a consolidated rigid panel.
- Drilling and Through-Hole Plating: Computer-controlled CNC drills create through-hole vias. Panels undergo chemical desmearing, electroless copper seed deposition, and electrolytic plating to coat 20-25μm of pure copper on all internal via barrel walls.
- Outer Layer Imaging and Etching: Outer patterns are imaged, plated, and stripped to expose finished surface traces and mounting pads.
- Solder Mask and Silkscreen Application: LPI solder mask is applied, photo-imaged, developed, and cured. Component reference designators and markings are printed using direct legend printers.
- Surface Finish Deposition: Exposed copper pads are coated with the specified finish (HASL, ENIG, OSP, Immersion Tin/Silver).
- Milling and Profiling: Individual boards or sub-panels are routed using CNC diamond-router bits or grooved for V-scoring.
Quality Assurance and Testing Controls to Request
- Automated Optical Inspection (AOI): Post-etch and post-soldermask visual scanning against CAD ground truth to detect misalignments, solder mask bridges, or slivers.
- Flying Probe / Bed-of-Nails Electrical Testing: 100% netlist electrical verification to validate end-to-end continuity (verifying no open circuits) and isolation (verifying no short circuits up to 250 V).
- Time Domain Reflectometry (TDR) Testing: Validates controlled impedance targets (e.g., 50Ω ± 10%) using dedicated test coupons located on panel breakaways.
- Microsection Analysis: Slicing, mounting, polishing, and microscopically inspecting cross-sections to verify via copper barrel plating thickness, layer-to-layer registration, and inner interconnections (essential for IPC Class 3).
Common Rigid PCB Applications
Rigid circuit boards form the primary backbone across all major electronics verticals.
RIGID PCB APPLICATION SECTORS
│
┌─────────────────┬─────────────┴─────────────┬─────────────────┐
▼ ▼ ▼ ▼
[Computing & Net] [Automotive] [Industrial & Med] [RF & Power]
* Motherboards • Engine Controllers • PLCs & Drives • 5G Base Stations
* Servers • Battery Mgmt (BMS) • Patient Monitors • Solar Inverters
* Network Routers • ADAS Radar Sensors • MRI Electronics • PSU Switching
- Computing and Consumer Electronics: High-density motherboards, graphics cards, enterprise server backplanes, home automation hubs, audio equipment, and flat-panel display controllers requiring high signal density and low manufacturing cost.
- Automotive and Transportation: Electronic Control Units (ECUs), Battery Management Systems (BMS) in electric vehicles, advanced driver-assistance systems (ADAS) radar modules, and LED exterior lighting controllers operating under demanding thermal profiles.
- Industrial, Medical, and Aerospace: Programmable Logic Controllers (PLCs), high-voltage variable-frequency drives (VFDs), surgical robotic controllers, patient vitals monitoring equipment, avionics instrumentation, and aerospace guidance systems built to IPC Class 3 standards.
- RF, Telecommunications, and Power Electronics: High-frequency cellular 5G transceivers, phase-array antennas, synchronous high-voltage power supplies, and commercial grid-tie solar inverter systems.
Rigid PCB Cost, Reliability, and Supplier Selection
Navigating trade-offs in board complexity, production volume, and fabrication parameters prevents unexpected budget overruns and delivery delays.
PRIMARY COST ESCALATION DRIVERS
┌─────────────────────────────────────────────────────────────────┐
│ Layer Count : Adding layers directly increases lamination │
│ Via Technology : Buried/blind/laser vias require extra cycles │
│ Base Laminates : High-speed & ceramic cores cost up to 5x FR-4 │
│ Tight Spacing : <4/4 mil rules lower fabrication panel yield │
│ Surface Finish : Gold immersion (ENIG) costs more than HASL │
└─────────────────────────────────────────────────────────────────┘
Primary Drivers of Rigid PCB Cost
- Layer Count and Stack-Up Complexity: Moving from a 2-layer to a 4-layer design increases base cost by approximately 30-40% due to extra core prep, inner AOI, and lamination cycles.
- Panel Utilization: Fabricators manufacture boards on standard panel sheets (e.g., 18 × 24 in). Board outline dimensions that maximize usable panel real estate (>85%) minimize waste and lower cost per piece.
- Advanced Drilling and HDI Architectures: Standard through-hole mechanical drilling represents the baseline cost. Incorporating blind/buried vias or laser-drilled HDI microvias requires multiple separate drilling, lamination, and plating passes, scaling tooling costs significantly.
- Base Material Grade and Copper Weight: Specialized high-frequency laminates (e.g., Rogers) or heavy copper boards (≥ 3 oz) incur significant raw material premiums compared to standard Tg 140℃ FR-4 with 1 oz copper.
- Manufacturing Tolerances: Requiring tight trace width tolerances (<± 0.5 mil), tight drill-to-copper clearances (<7 mil), or non-standard surface finishes increases scrap rates and raises quotes.
Quote-Ready Pre-Flight Checklist
Before releasing your design package for formal DFM review and quotation, ensure your project archive contains the following engineering assets:
- Complete CAM Package: Clean RS-274X Gerber files or native ODB++ format, including all copper layers, solder masks, silkscreens, mechanical outline, and drill files.
- Comprehensive Fabrication Drawing:
- Exact board dimensions, overall board thickness (1.6 mm ± 10%, 0.8 mm, etc.), and routing tolerances (± 0.1 mm).
- Layer stack-up drawing specifying dielectric thicknesses and copper foil weights.
- Target impedance table identifying specific trace geometries, layers, and reference planes.
- Specified surface finish (e.g., ENIG per IPC-4552, Lead-Free HASL).
- Applicable IPC performance class (IPC-6012 Class 2 vs. Class 3).
- Color requirements for solder mask (green, black, blue, white) and silkscreen.
- Tooling and Drill Tables: NC Drill Excellon file including defined plated (PTH) and non-plated (NPTH) tool diameters and finished hole size tolerances (±2-3 mil).
- Sourcing and Production Volume: Order quantity requirements (prototypes vs. high-volume production), target lead times, and special panel delivery requirements (V-scored or tab-routed sub-panels with fiducials).
Next Step: Send your design package to your PCB manufacturing partner for a comprehensive design-for-manufacturability (DFM) review and accurate rigid PCB quote before locking in your hardware delivery schedule.
Frequently Asked Questions
What is the most common material used for rigid PCBs?
The most widely used material is FR-4 (Flame Retardant 4), a composite dielectric composed of woven fiberglass cloth bonded with an epoxy resin matrix. It provides excellent mechanical strength, reliable electrical insulation, good flammability resistance (UL94 V-0), and high cost efficiency for everyday consumer, industrial, and automotive electronics.
What is the difference between a rigid PCB and an FR-4 PCB?
“Rigid PCB” describes the mechanical form factor of any printed circuit board that cannot be bent or folded. “FR-4” refers to the specific fire-retardant material standard commonly used to build rigid PCBs. While almost all standard FR-4 boards are rigid PCBs, rigid PCBs can also be built from alternative substrates, including ceramic cores, metal-backed cores (MCPCB), or PTFE high-frequency composites.
Can a rigid PCB have more than two layers?
Yes. Rigid PCBs are commonly manufactured in multilayer structures ranging from 4 to 32 layers, and can exceed 64 layers for enterprise server backplanes and high-performance supercomputing systems. Multilayer constructions use stacked alternating layers of dielectric cores and prepreg bonding sheets laminated together under high heat and pressure.
When should I choose a rigid PCB instead of a flex PCB?
Choose a rigid PCB when your design lives in a static, fixed-dimension enclosure, requires support for heavy through-hole or large SMT components, and demands the lowest possible manufacturing and assembly cost. Flex PCBs should be reserved for designs that require dynamic mechanical bending, 3D packaging around tight corners, or the elimination of internal wiring harnesses.
Which surface finish is best for a rigid PCB?
- ENIG (Electroless Nickel Immersion Gold) is best for high-density, fine-pitch SMT, BGAs, and long shelf life.
- Lead-Free HASL is best for low-cost, high-reliability commercial designs with larger component packages (>0603, non-fine-pitch).
- Immersion Silver or OSP is preferred for high-speed signal routing where avoiding the nickel skin effect of ENIG is critical.
How do layer count and copper weight affect rigid PCB cost?
Increasing the layer count raises costs by 30-40 between major steps (e.g., 2-layer to 4-layer) due to extra material, lamination, and automated optical inspection steps. Increasing copper weight (e.g., moving from standard 1 oz to 3+ oz heavy copper) increases raw material costs, requires longer chemical etching cycles, demands specialized prepreg resin filling, and requires wider trace spacing—which can reduce overall panel yield.
The Path to Reliable Hardware
Successfully designing and sourcing rigid circuit boards requires balancing structural, electrical, and thermal demands from the start.
- Start with Operational and Mechanical Constraints: Determine environmental temperatures, vibration profiles, peak operating currents, signal speeds, and physical enclosure constraints.
- Select Materials and Stack-Up Geometry Early: Match layer counts, core properties (standard vs. high-Tg vs. RF), copper weights, and surface finishes directly to those operational parameters.
- Validate Manufacturability Before Release: Apply comprehensive DFM spacing, annular ring rules, drill aspect ratio limits, and thermal relief best practices.
- Partner with Your Fabricator: Leverage early DFM feedback from your manufacturing partner to catch impedance mismatch risks, eliminate acid traps, optimize panel utilization, and accelerate product delivery.
